Fan Shaped Welding Gauge Weld Fillet Height/Leg Length Gage Stainless Steel Inspection Tool Metric
-
Detail
- Product Name: Fan Shaped Welding Gauge Weld Fillet Height/Leg Length Gage Stainless Steel Inspection Tool Metric
- Item NO.: WSG-01014
- Weight: 0.14 kg = 0.3086 lb = 4.9384 oz
- Category: WELDING GAGE > Bridge CAM Gauge
- Brand: WeldingStop
- Creation Time: 2015-04-19
Item Name:
Welding fillet Gage Schweißnahtlehre Schweißlehre Schweißnaht S/S 0.1mm
List Include:
Range Deflection Fan WSG-01014 1set
More Details:Material:Stainless steel
Others:Packed in synthetic leather bag with instruction
Metric reading
Laser engraving
Application:

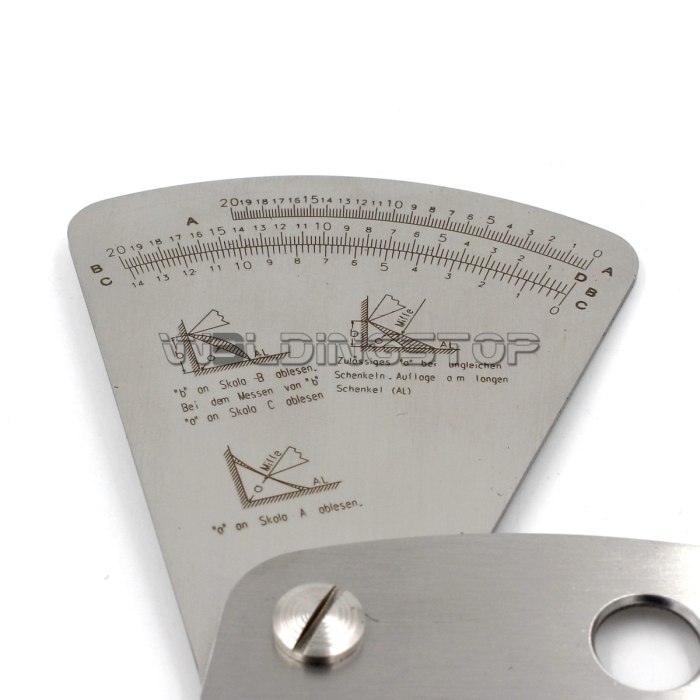

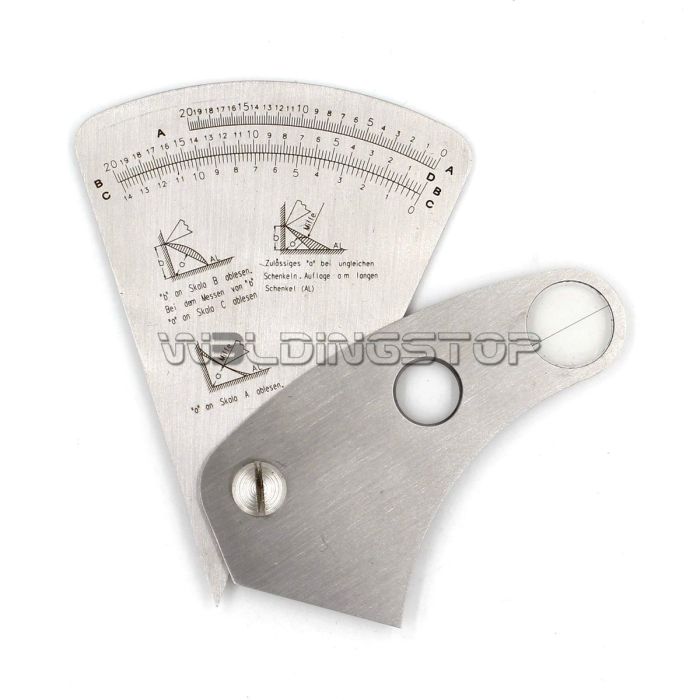

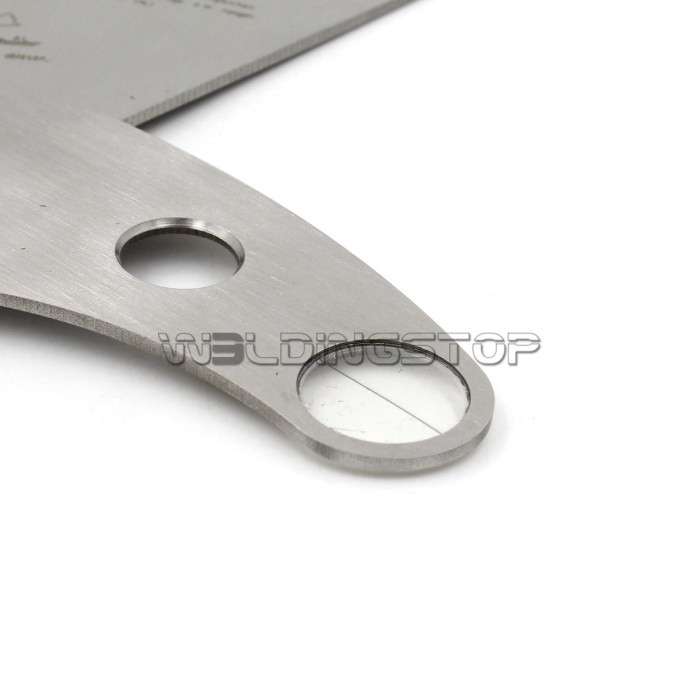

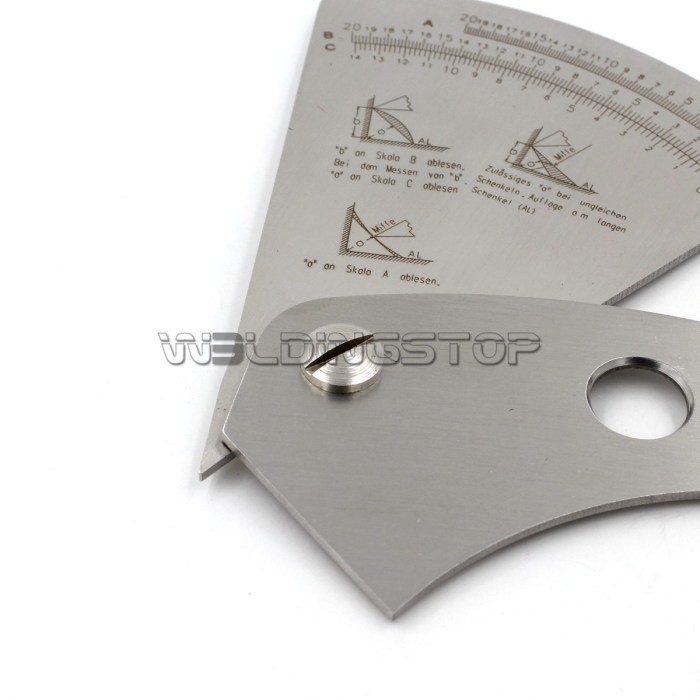

Gauge is set fixed part ( there is a window for reading) onto a level surface, measurement of height the weld is made mobile part of the gauge, which has three fixed nonlinear scale A, B and C with resolution 0.1 mm. Scale A, B and C are used depending on the location of the welded parts according to drawings on the body gauge. They read from the hull to zero risks sliding window.
The magnitude of the leg "b" is read on the scale - B
The height seam "a" is read on the scale - C
The height scalene seam "a" is read on the scale - C
The height of the concave seam "a" is read on the scale - A
