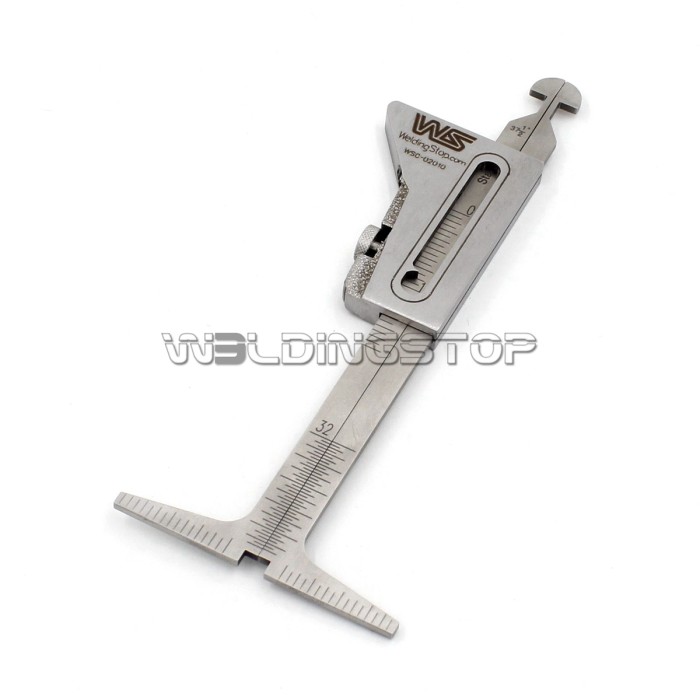

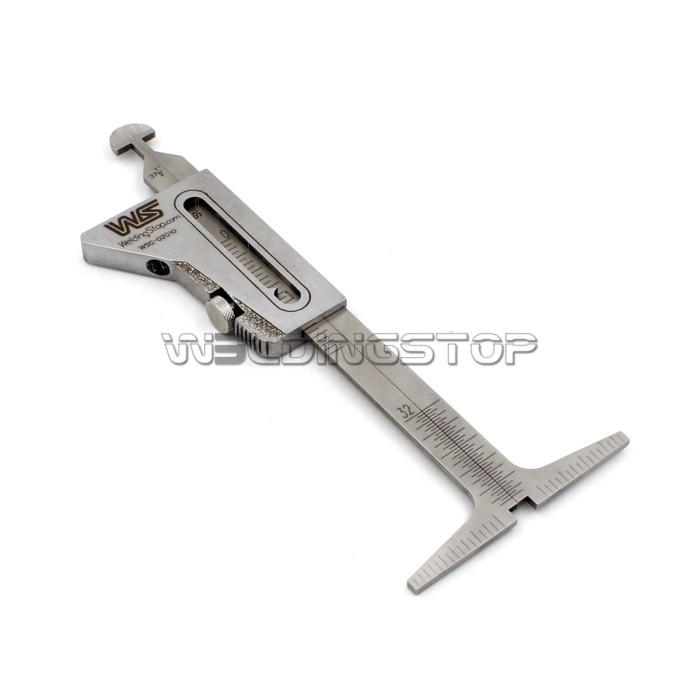

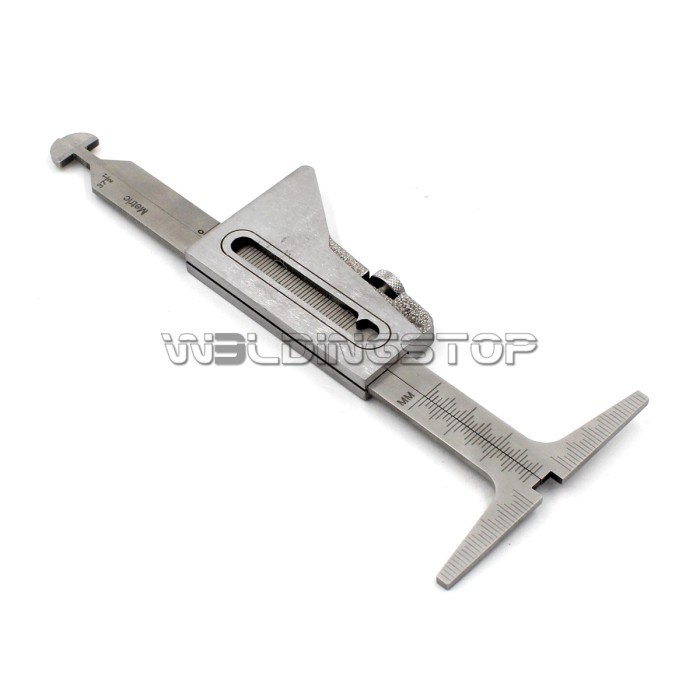

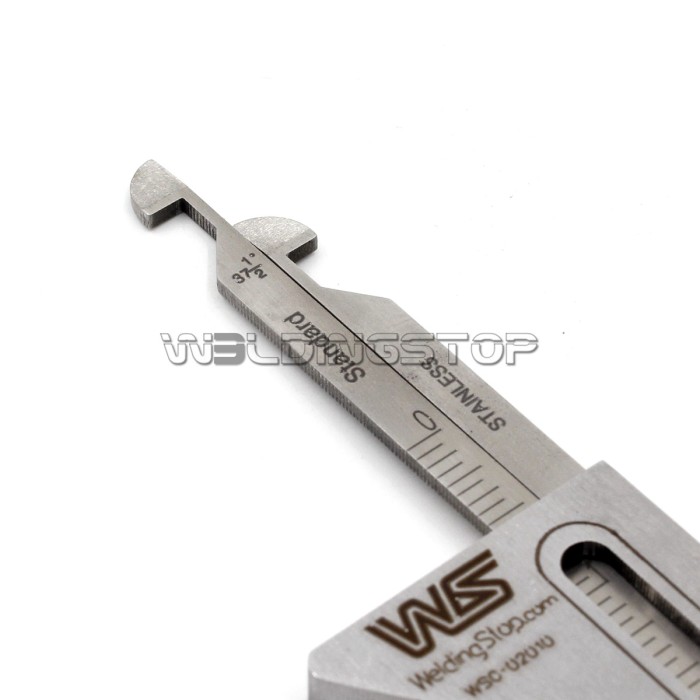

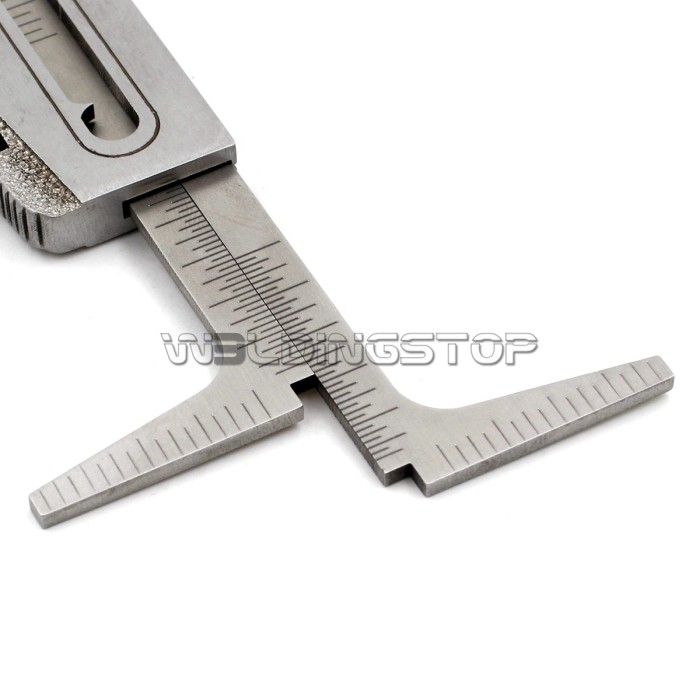

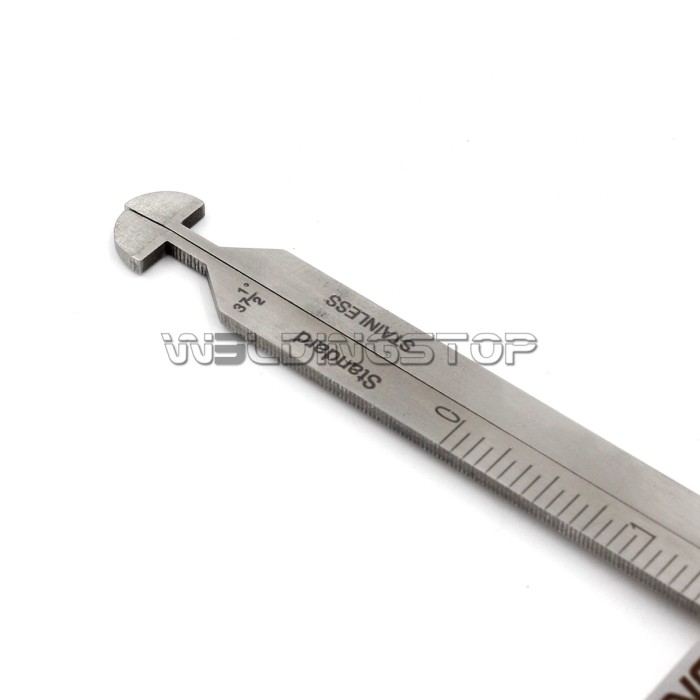

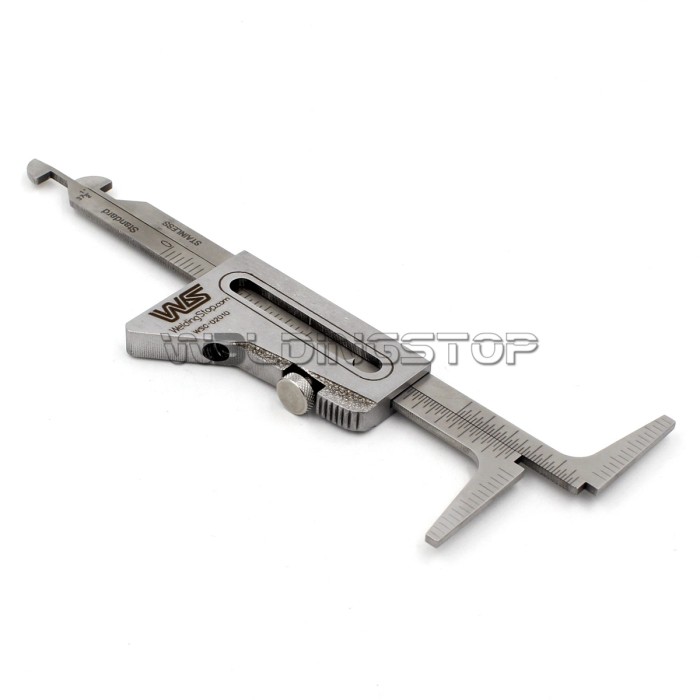

Hi-Lo Welding Gauge Pipe Weld Gage Thickness/Misalignment Inspection Tool 37''1/2 Degree Bevel Angle
-
Detail
- Product Name: Hi-Lo Welding Gauge Pipe Weld Gage Thickness/Misalignment Inspection Tool 37''1/2 Degree Bevel Angle
- Item NO.: WSG-01010
- Weight: 0.19 kg = 0.4189 lb = 6.7021 oz
- Category: WELDING GAGE > Hi-Lo Gauge
- Brand: WeldingStop
- Creation Time: 2015-04-19
Minimum Order Quantity:1 piece
Item Name:
Hi-Lo Welding Gauge Pipe Thickness / Misalignment Weld Bevel Angle Gage in inch / mm
List Included:
1 piece x Hi-Lo Welding Gauge Ref:Hi-Lo WSG-01010
Bullet Point:
√Hi-Lo welding gauge could measure pipe internal misalignment or thickness
√Measurements read in standard one side, and metric on the opposite side
√The Numbers and scales are laser engraving for clearer and more wearable
√Gauge is made of stainless steel
√Packed in plastic box for easy storage and carrying, and it can reduce wear and tear on the gauge
√The gauge has an instruction that you can download for understanding how to use better
Instruction for use:
Measuring Method
Measurement Range
Pipe internal misalignment
0-30mm & 0-1''
Butt weld reinforcement
0-30mm & 0-6/8''
Outside misalignment
0-30mm & 0-1''
Fillet leg length
0-30mm & 0-6/8''
Bevel angle
37.5degree
More Details:
WS SKU:WSG-01010
Brand: WeldingStop
Item Package Quantity: 1 piece
Maintenance Method:
1.Welding inspection ruler shall not be piled together with other metal tools,in case it is distorted.Friction between metal parts may cause malfunction and blur scales.
2.Do not wipe scale area with amyl acetate etc.
Item Name
WS SKU
Reading in Metric / Inch
Pipe Internal Misalignment
Bevel Angle
Outside Misalignment
Fillet Leg Length
Butt Weld Reinforcement
Gap width
High Low Gauge
WSG-01010
Metric
0-30mm
37.5°
0-30mm
0-30mm
0-30mm
--
BUY NOW!
Inch
0-1''
37.5°
0-1''
0-6/8''
0-6/8''
--
Single High Low Gauge
WSG-01011
Metric
0-35mm
--
--
--
--
0-4mm
BUY NOW!
Single High Low Gauge
WSG-01033
Inch
0-3/16"
--
--
--
--
1/32''-3/16''
BUY NOW!
