Product Name HJC-45Welding Seam Gauge Weld Fillet Throat Size/Length Gage Thickness Inspection Tool Metric Readin
Item NO. WSG-01004
Weight 0.132 kg = 0.2910 lb = 4.6562 oz
Category Inspection Tool > Welding Gauge > HJC series
Brand WeldingStop
Creation Time 2015-04-19


Minimum Order Quantity: 1 piece




Item Name:

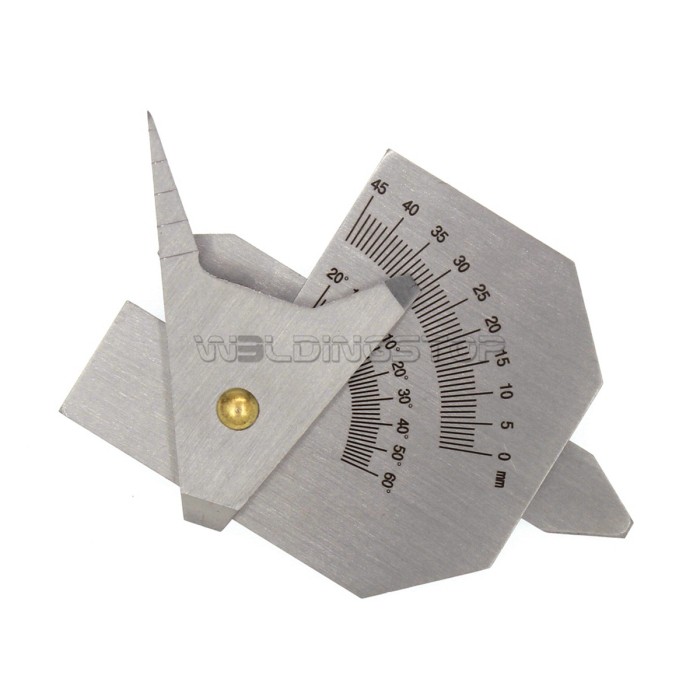

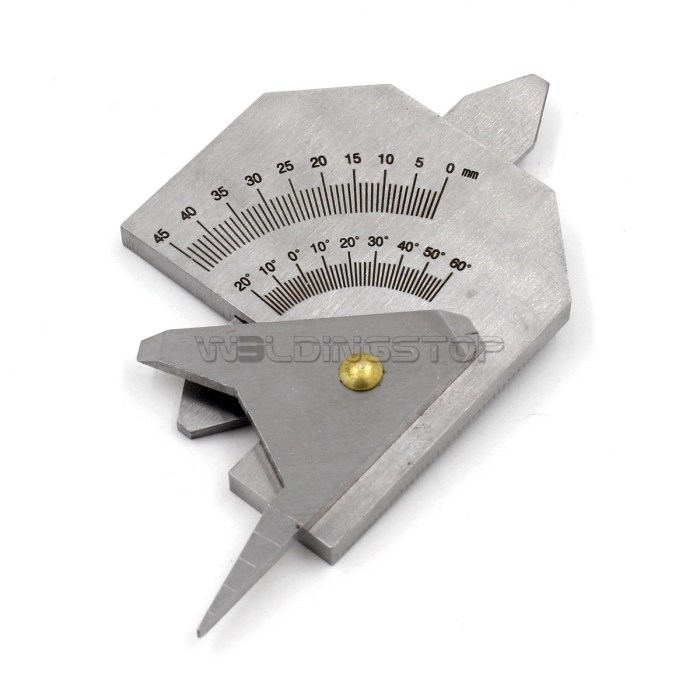

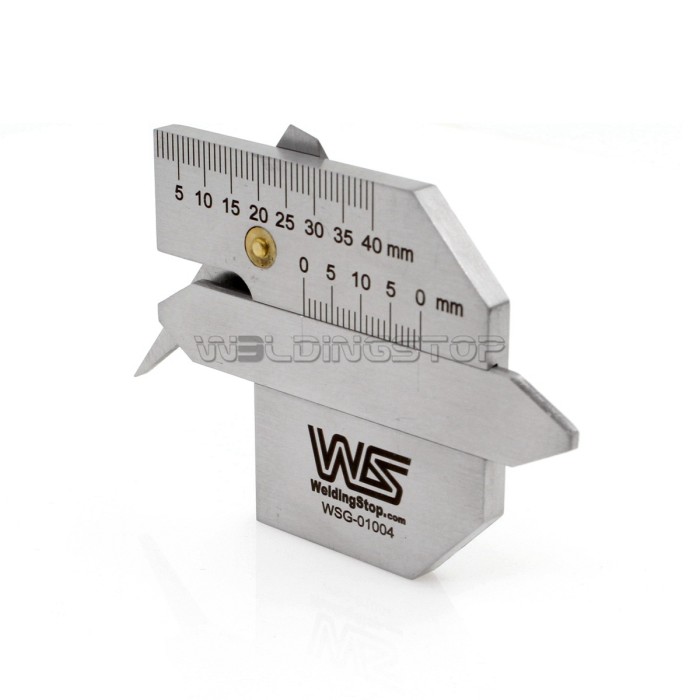

HJC-45 Welding Fillet Gauge Fillet Throat Size Length Gage Thickness Tool Metric Reading


List Included:



1 piece x Welding Fillet gauge   Ref: HJC-45    WSG-01004



Bullet Point:



Welding gauge HJC-45 , which could be read in metric

Measure reinforcement and fillet leg length / throat size

Gauge is made of stainless steel , which could ensure durability, effectively extending the service life.

All scales are laser engraving ,that clearly marked for good visibility.

Packed in plastic box in order to storage and carrying.



Instruction for use:


Measuring Method

Measurement Range

Fillet Leg Length / Throat Size

0-20mm

Seam Reinforcement

0 -20mm

Seam Width

0-45mm

Bevel Angle

0-80 degree

Gap Width

0-5mm

Thickness

0-40mm


More Details:



WS SKU:WSG-01004

Brand: WeldingStop

Item Package Quantity: 1 piece



Maintenance Method:

     1.Welding inspection ruler shall not be piled together with other metal tools,in case it is distorted.Friction between metal parts may cause malfunction and blur scales.

     2.Do not wipe scale area with amyl acetate etc.




HJC Series of Welding Seam Gauge


Item Name

WS SKU

Seam Reinforcement

Leg Length / Fillet Weld

Seam Width

Movable Groove Angle

One Side Groove Angle

Groove Angle

Gap Width

Undercut / Pit Depth

Thickness



HJC-30

WSG-01001

0-15mm

0-20mm

0-30mm

20 / 30 / 40 / 50 / 60 / 70 / 80 degree

117.5 / 122.5 degree

45 / 55 / 60 / 65 degree

0.5-3.5mm

--

--
