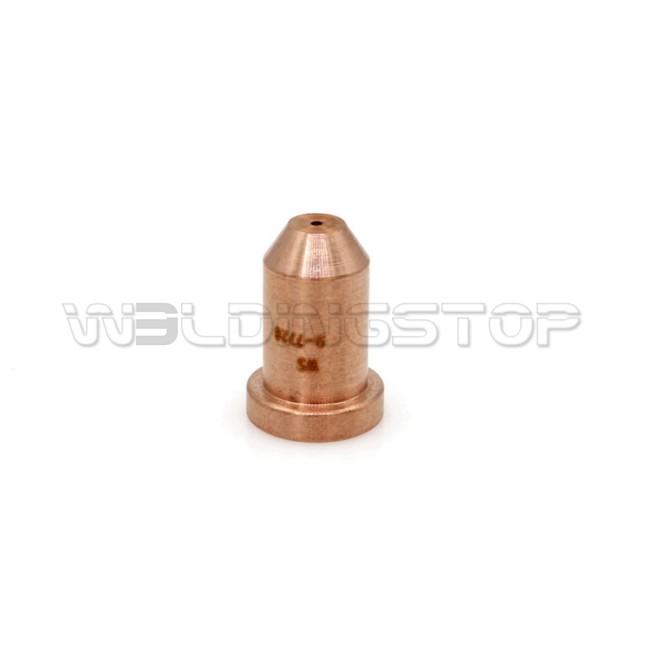

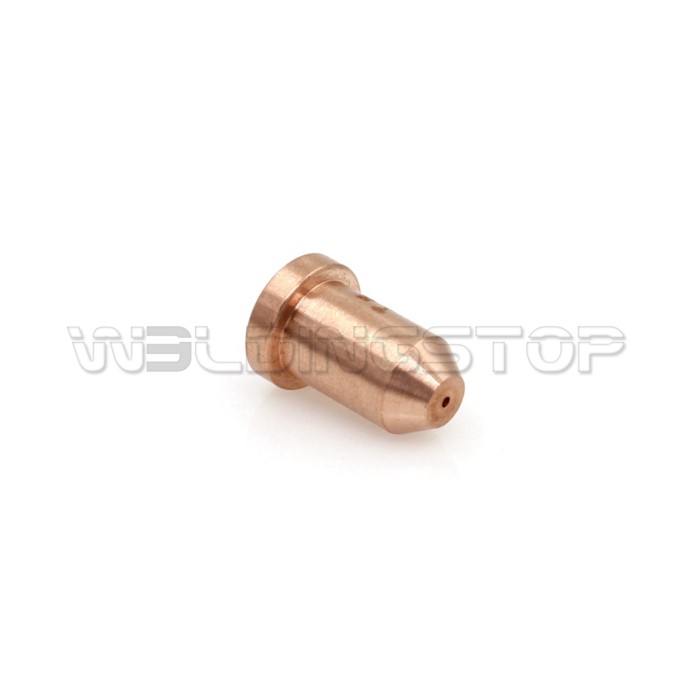

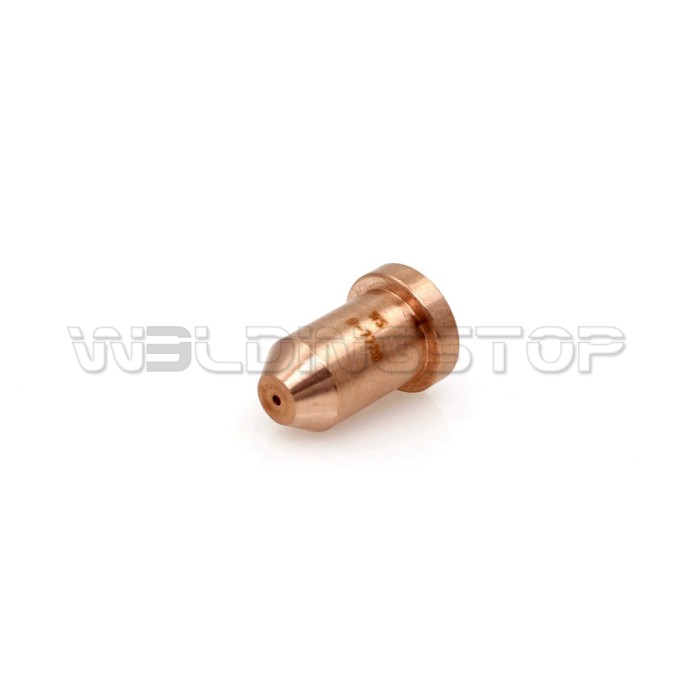

9-7726 Tip Nozzle for Thermal Dynamics PCH/M-60 Plasma Cutting Torch, PCH/M-62 Plasma Cutting Torch, PCH/M-80 Plasma Cutting Torch, PCH/M-102 Plasma Cutting Torch (WeldingStop Replacement Consumables)

US$ 1.67

Add to Cart

Estimate Shipping Cost

Share:: >

Adding to cart succeed

9-7726 Tip Nozzle for Thermal Dynamics PCH/M-60 Plasma Cutting Torch, PCH/M-62 Plasma Cutting Torch, PCH/M-80 Plasma Cutting Torch, PCH/M-102 Plasma Cutting Torch (WeldingStop Replacement Consumables)

color:red,size:xxl

Subtotal: US$ 0

View My Cart

Checkout

Detail

Product Name: 9-7726 Tip Nozzle for Thermal Dynamics PCH/M-60 Plasma Cutting Torch, PCH/M-62 Plasma Cutting Torch, PCH/M-80 Plasma Cutting Torch, PCH/M-102 Plasma Cutting Torch (WeldingStop Replacement Consumables)
Item NO.: WSP-10025
Weight: 0.01 kg = 0.0220 lb = 0.3527 oz
Category: PLASMA TORCH & CONSUMABLES > For Thermal Dynamics Torch > PCH/M-60
Creation Time: 2018-05-07

50-AMP THERMAL DYNAMICS NOZZLE - Calibrated for 50A cutting on PCH-60 and M-60 handheld plasma torches used in CutMaster and PakMaster systems; clean cuts on steel up to 12mm thickness.
PRECISION ORIFICE - Exact bore diameter and internal chamfer match Thermal Dynamics OEM specifications; maintains stable arc constriction and consistent cut quality throughout the nozzle replacement cycle.
COPPER ALLOY BODY - High-conductivity copper rapidly dissipates arc heat from the orifice zone; resists erosion and holds dimensional accuracy longer than brass-bodied nozzles at sustained 50A cutting current.
PCH/M-60 DIRECT FIT - Drop-in replacement for Thermal Dynamics PCH-60 and M-60 plasma torches with no adapter rings or modifications required; also fits aftermarket PCH/M-60 style torch heads.
WELDINGSTOP AFTERMARKET VALUE - OEM-equivalent nozzle manufactured to strict tolerances at a fraction of genuine Thermal Dynamics and ESAB factory parts pricing.

9-7726 Tip Nozzle 50A — Thermal Dynamics PCH/M-60 Plasma Torch

The 9-7726 Tip Nozzle is a 50-amp replacement plasma cutting nozzle for Thermal Dynamics PCH-60 and M-60 series plasma torches. This nozzle is the most frequently replaced consumable on Thermal Dynamics 50-amp manual plasma systems used in HVAC, auto body, and light fabrication shops. Precision-machined copper body with exact orifice geometry ensures clean, square cuts on mild steel, stainless, and aluminum plate. Direct aftermarket replacement for OEM part number 9-7726 at a fraction of factory pricing.

KEY FEATURES

50-Amp Thermal Dynamics Nozzle	Specifically calibrated for 50A cutting on PCH-60 and M-60 handheld plasma torches; delivers clean cuts on steel up to approximately 12mm (1/2") with proper travel speed and air pressure.
Precision Orifice Geometry	Exact bore diameter and internal chamfer contour match Thermal Dynamics OEM specifications; maintains stable plasma arc constriction and consistent cut quality across the full consumable life.
Copper Alloy Body Construction	High-conductivity copper alloy rapidly dissipates arc heat from the orifice zone; resists erosion and maintains dimensional accuracy longer than generic brass-bodied nozzles at 50A cutting current.
PCH/M-60 Platform Direct Fit	Engineered for Thermal Dynamics PCH-60 and M-60 plasma torches found on CutMaster and PakMaster power supplies; drop-in replacement with no adapter rings or modifications needed.
WeldingStop Aftermarket Value	Professional-grade Thermal Dynamics-compatible nozzle manufactured to OEM-equivalent tolerances; priced significantly below genuine Thermal Dynamics/ESAB factory parts.

SPECIFICATIONS

Reference	9-7726
Type	Plasma Tip Nozzle
Amperage	50A
Compatible Torch	Thermal Dynamics PCH-60 / M-60
Material	Copper Alloy
OEM Equivalent	Thermal Dynamics 9-7726
Brand	WeldingStop

TYPICAL USES

HVAC Duct Fabrication — Clean, fast cuts through galvanized sheet metal for rectangular and spiral ductwork using Thermal Dynamics 50A plasma systems.
Auto Body & Collision — Precision nozzle for cutting rusted panels, frame sections, and body mounts; tight orifice geometry reduces kerf width for accurate cut lines.
Light Structural Fabrication — Cut angle iron, channel, flat bar, and plate up to 12mm for gates, railings, brackets, and structural repairs.
Mobile Welding & Repair — Keep spare 9-7726 nozzles in the service truck for on-site plasma cutting with PCH-60/M-60 torch systems.
Production Cutting Stations — Bulk-pack purchase for shops running Thermal Dynamics plasma cutters as their primary cutting tool; the most frequently replaced consumable.
