HJC-40 Welding Seam Gauge - Fillet Throat/Leg Length Gap/Undercut Depth Inspection Tool Metric | WeldingStop
-
- Product Name: HJC-40 Welding Seam Gauge - Fillet Throat/Leg Length Gap/Undercut Depth Inspection Tool Metric | WeldingStop
- Item NO.: WSG-01002
- Weight: 0.14 kg = 0.3086 lb = 4.9384 oz
- Category: WELDING GAUGE > HJC series
- Creation Time: 2015-04-19
- HJC
- Precision welding inspection measurement tool
- Durable stainless steel construction
- Easy-to-read graduated markings
- Ideal for weld quality control and inspection
- Compatible with standard welding inspection procedures
- Includes protective carry case for storage

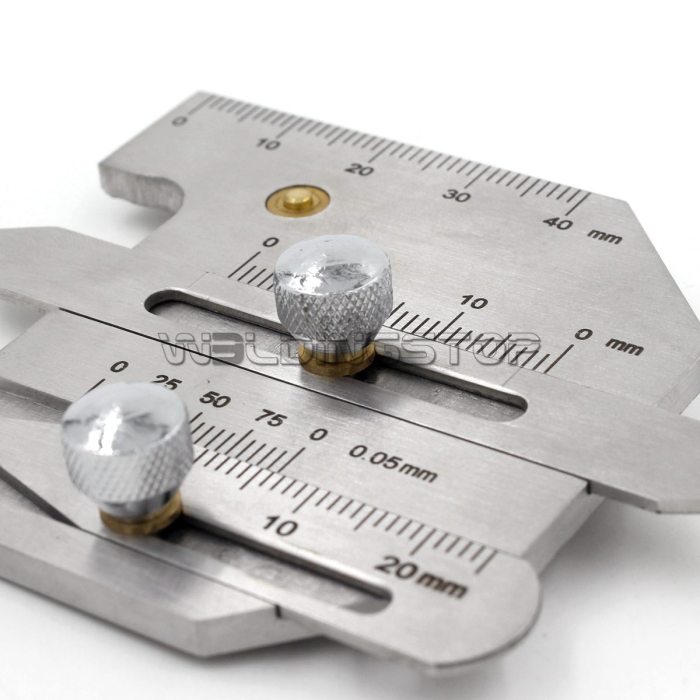

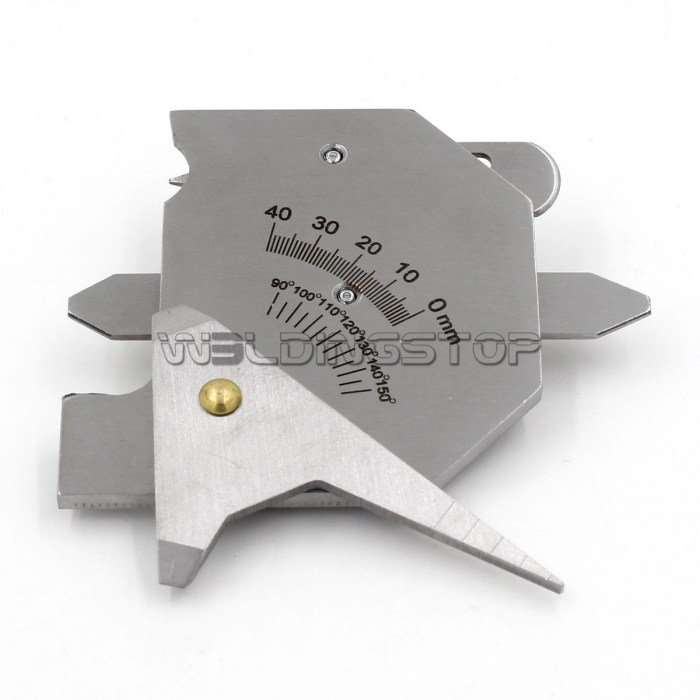

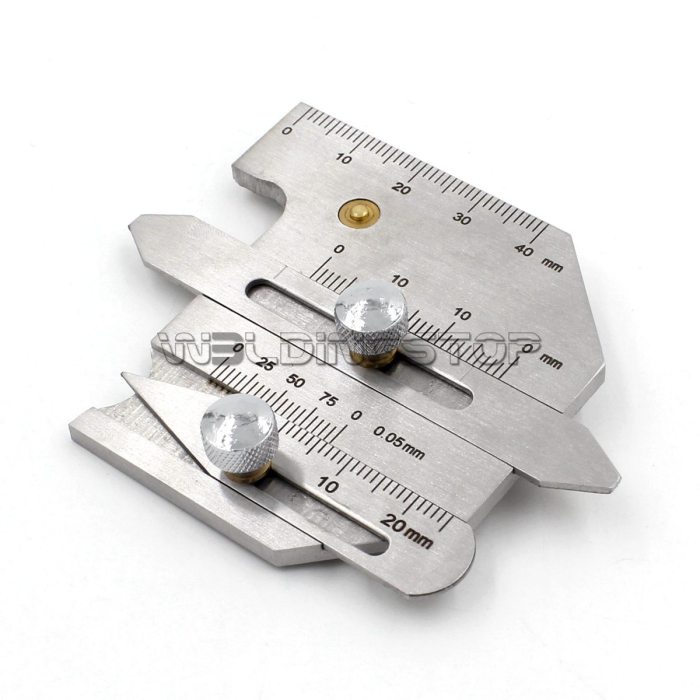

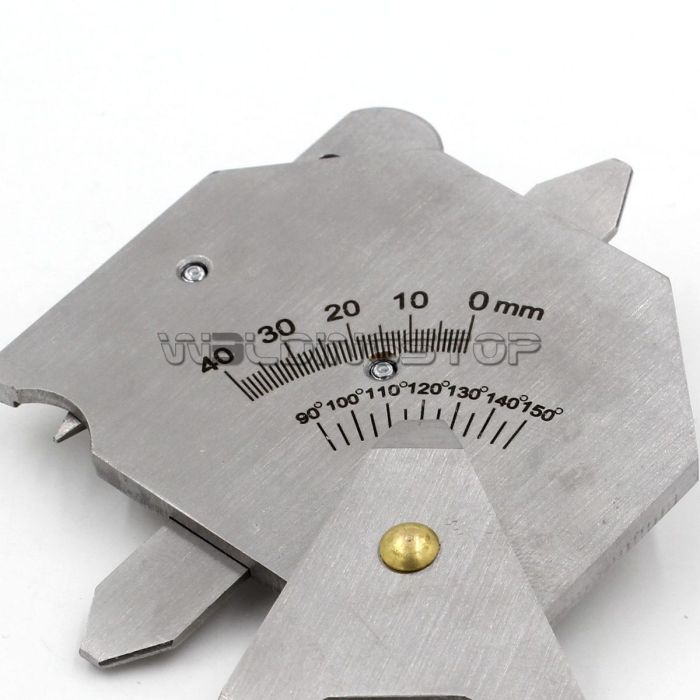

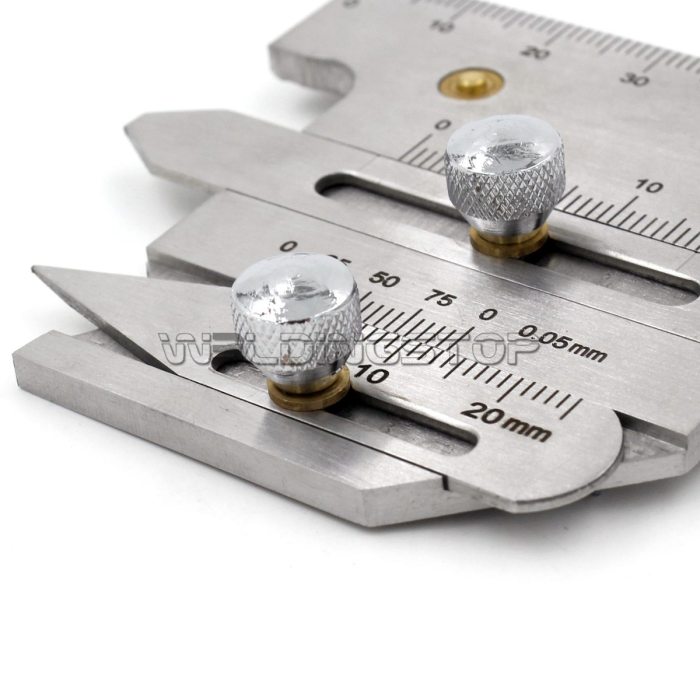

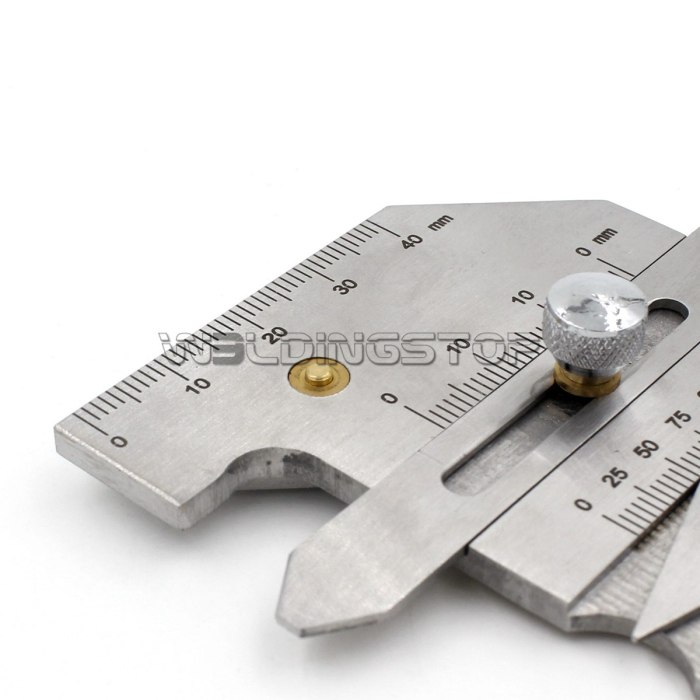

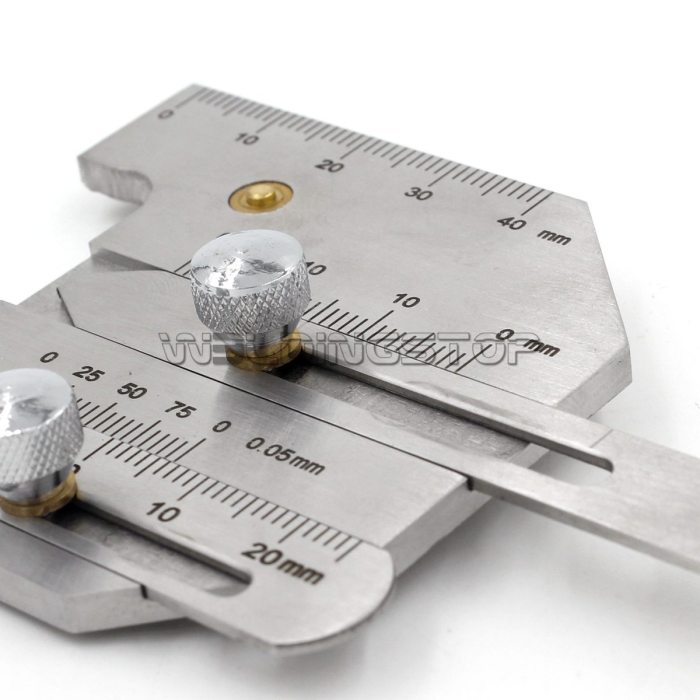

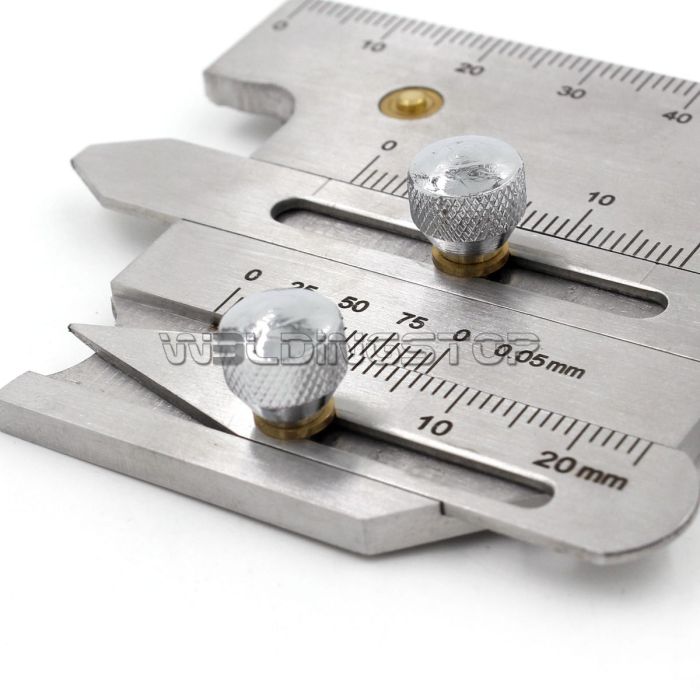

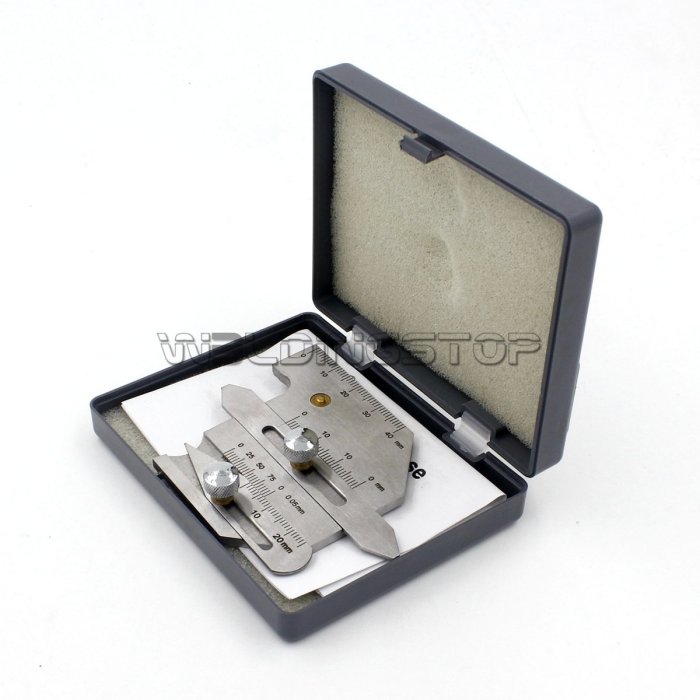

HJC-40 Welding Seam Gauge
Fillet Throat/Leg Length & Undercut Inspection | Model: WSG-01002
KEY FEATURES
FILLET THROAT & LEG LENGTH
Measures both fillet weld throat thickness and leg length in one tool. Ensures fillet welds meet specified design dimensions for load-bearing joints.
UNDERCUT & GAP DEPTH
Measures undercut depth and gap clearance in welds. Critical for detecting weld defects that can lead to stress concentration and failure.
MULTI-FUNCTION DESIGN
Combines fillet gauge, undercut gauge, and gap measurement in one precision instrument. Eliminates the need for multiple separate tools.
METRIC READINGS
Clear metric scale markings for precise readings. Suitable for international welding codes and inspection standards.
SPECIFICATIONS
Spec Detail Model HJC-40 (WSG-01002) Measurement Type Fillet throat, leg length, undercut depth, gap Material Stainless steel Scale Metric (mm) Application Fillet weld QC, defect detection TYPICAL USES
Structural Steel
Shipbuilding
Bridge Fabrication
Heavy Equipment
