HJC-60 Welding Seam Gauge - Fillet Undercut/Misalignment Inspection Tool Metric | WeldingStop
-
- Product Name: HJC-60 Welding Seam Gauge - Fillet Undercut/Misalignment Inspection Tool Metric | WeldingStop
- Item NO.: WSG-01005
- Weight: 0.23 kg = 0.5071 lb = 8.1130 oz
- Category: WELDING GAUGE > HJC series
- Creation Time: 2015-04-19
- HJC
- Precision welding inspection measurement tool
- Durable stainless steel construction
- Easy-to-read graduated markings
- Ideal for weld quality control and inspection
- Compatible with standard welding inspection procedures

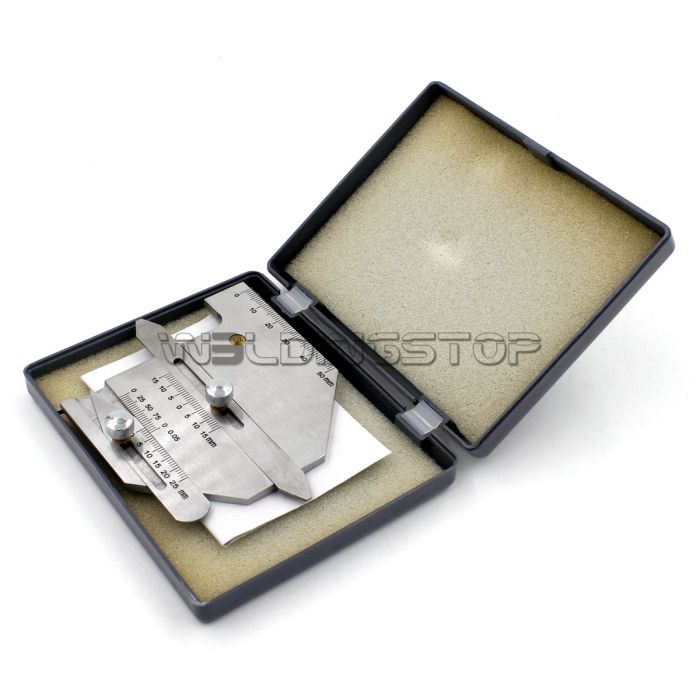

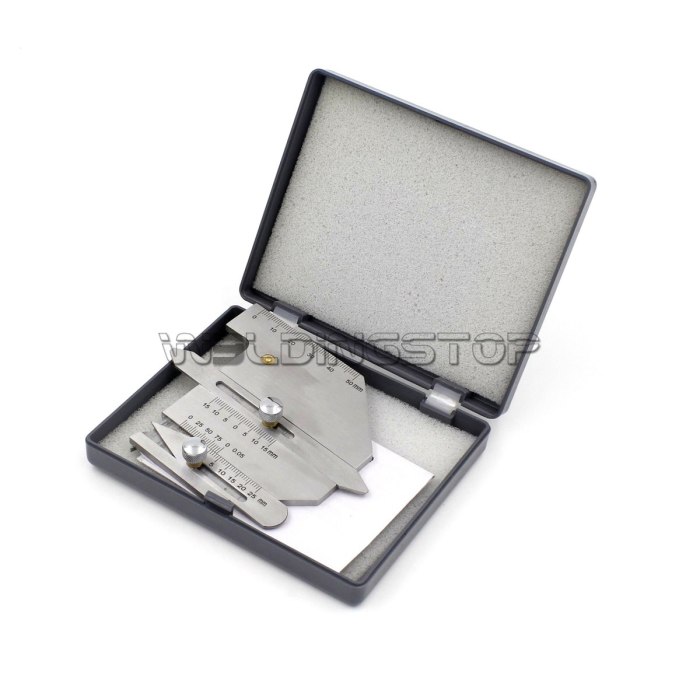

- Includes protective carry case for storage
HJC-60 Welding Seam Gauge
Fillet Inspection & Undercut/Misalignment | Model: WSG-01005
KEY FEATURES
MISALIGNMENT CHECK
Measures plate/pipe misalignment before and after welding. Detects offset between joined members that can cause stress concentration and weld failure.
FILLET INSPECTION
Measures fillet weld leg length and throat. Verifies fillet conforms to specified size for load-bearing capacity in structural applications.
UNDERCUT DEPTH
Measures undercut depth along weld toe. Helps identify defective areas where the base metal has been eroded below the surface by the arc.
WIDE RANGE
Extended measurement range covers larger weld sizes. Suitable for heavy plate fabrication and structural steel inspection applications.
SPECIFICATIONS
Spec Detail Model HJC-60 (WSG-01005) Measurement Type Misalignment, fillet leg/throat, undercut depth Material Stainless steel Scale Metric Application Structural, heavy plate, pipe fitting QC TYPICAL USES
Pipe Fitting
Heavy Fab.
Alignment QC
Structural Steel
