- Product Name: Manual Welding Gauge - Standard Weld Reinforcement & Fillet Throat Size Gage with 60-70-80-90 Degree Bevel Angle - Multi-Function Stainless Steel Welding Inspection Tool - WeldingStop
- Item NO.: WSG-01031
- Weight: 0.12 kg = 0.2646 lb = 4.2329 oz
- Category: WELDING GAUGE > Standard welding gauge
- Creation Time: 2015-04-19

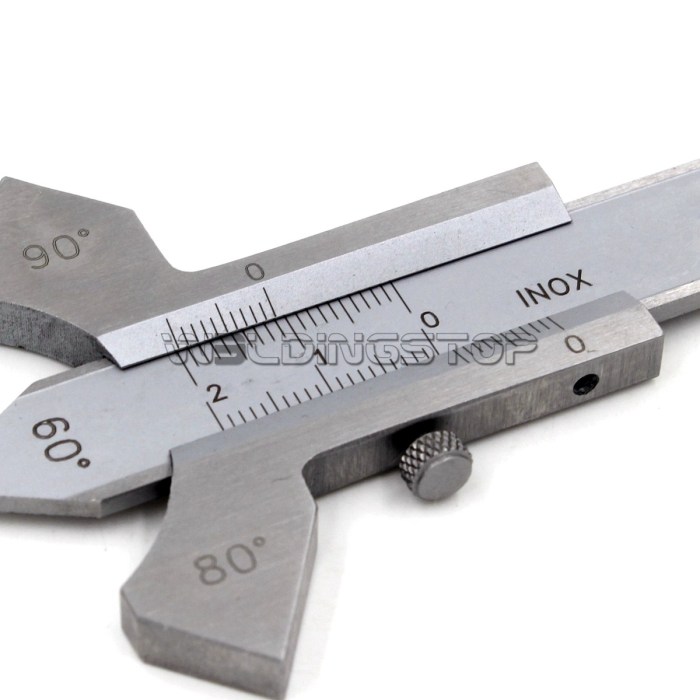

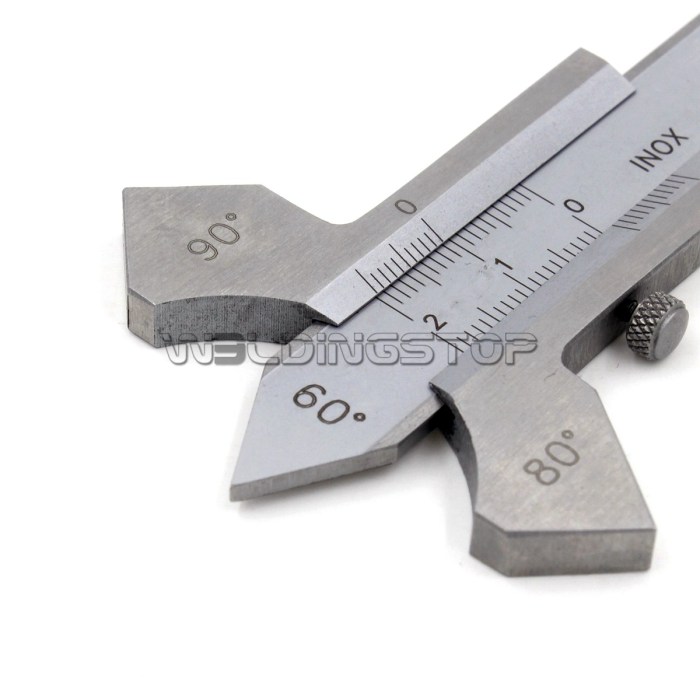

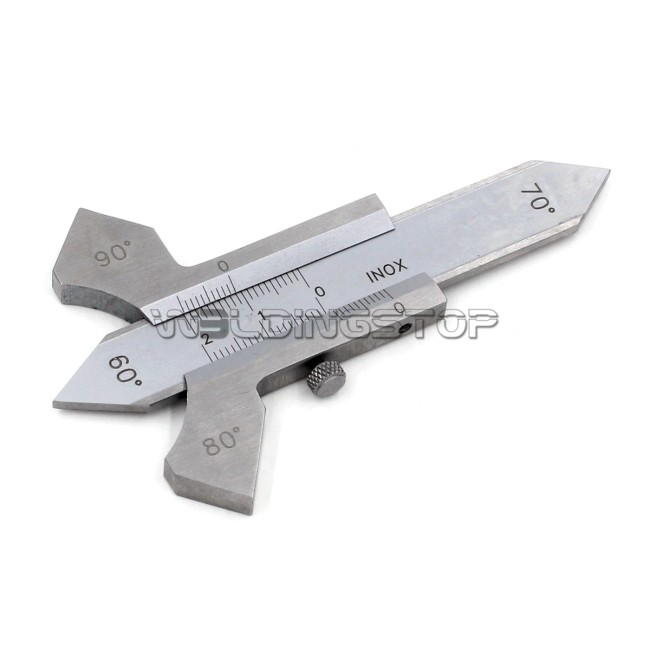

- 🔹 MULTI-FUNCTION GAUGE — Measures weld reinforcement height, fillet throat size, and bevel angles (60°, 70°, 80°, 90°) in one compact tool.
- 🔹 DUAL SCALE READINGS — Features both inch and metric scales for versatile use across international welding standards.
- 🔹 STAINLESS STEEL — Precision-ground stainless steel resists corrosion and maintains accuracy over years of heavy use.
- 🔹 EASY-TO-READ GRADUATIONS — Clearly marked increments allow quick visual readings without magnification.
- 🔹 POCKET-SIZED PORTABILITY — Slim profile fits comfortably in a shirt pocket or tool pouch for on-the-go inspections.
Manual Welding Gauge
Standard Weld Reinforcement & Fillet Throat Gage | Multi-Function Bevel Angle Inspection
KEY FEATURES

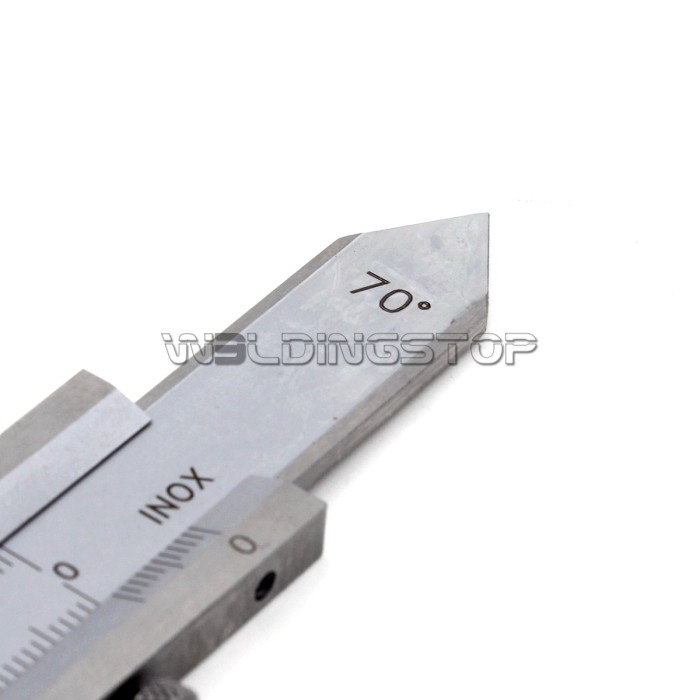

Four-Bevel Angle Set
Includes 60°, 70°, 80°, and 90° bevel angle references for groove weld preparation inspection.
Reinforcement Measurement
Directly measures weld bead reinforcement height to verify compliance with code requirements.
Fillet Throat Gage
Built-in fillet throat size checking for common fillet weld applications in structural fabrication.
Precision Ground Steel
Ground flat surfaces ensure accurate readings and long-term dimensional stability.
SPECIFICATIONS
Specification Detail Functions Reinforcement Height, Fillet Throat, Bevel Angle Bevel Angles 60°, 70°, 80°, 90° Material Stainless Steel, Precision Ground Scales Inch & Metric (Dual Reading) Application Weld Inspection, QC, Fabrication Portability Pocket-Sized, Lightweight APPLICATIONS
🔍Weld QC
🏭Fabrication
⚙️Structural Steel
📐Bevel Prep
