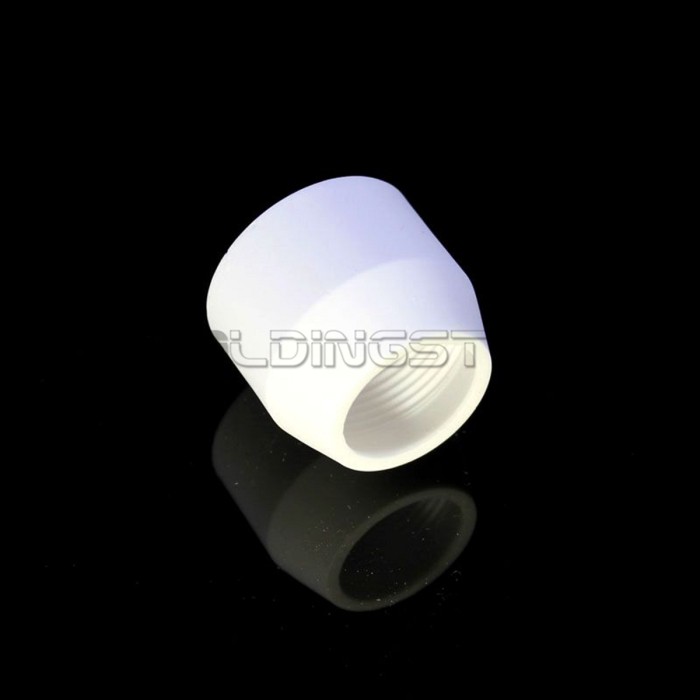

P80/P-80 Air Plasma cutting torch SHIELD CUP ceremic (WS OEMed consumables)

US$ 0.27

Add to Cart

Estimate Shipping Cost

Share:: >

Adding to cart succeed

P80/P-80 Air Plasma cutting torch SHIELD CUP ceremic (WS OEMed consumables)

color:red,size:xxl

Subtotal: US$ 0

View My Cart

Checkout

Detail

Product Name: P80/P-80 Air Plasma cutting torch SHIELD CUP ceremic (WS OEMed consumables)
Item NO.: WSP-01004
Weight: 0.025 kg = 0.0551 lb = 0.8818 oz
Category: PLASMA TORCH & CONSUMABLES > P-80 Plasma Torch
Creation Time: 2015-05-22

HIGH-TEMP CERAMIC CONSTRUCTION - Industrial-grade ceramic material withstands direct plasma arc radiation and molten metal spatter without cracking or spalling; significantly outperforms plastic shield caps in high-duty-cycle cutting.
NOZZLE ELECTRICAL ISOLATION - Provides critical electrical insulation between the negatively-charged nozzle tip and the workpiece; prevents double-arcing that can instantly destroy both nozzle and electrode on P80/P-80 torch systems.
PANASONIC P80 PLATFORM - Direct-fit ceramic shield for Panasonic P80 and P-80 series air plasma cutting torches; compatible with the full range of P80 consumables and P80-style aftermarket torches.
SPATTER SHIELDING - Protects the precision nozzle orifice from molten metal splash-back during piercing operations; a cracked or missing shield cup is the most common cause of premature nozzle failure on air plasma cutters.
VISUAL WEAR INDICATOR - Ceramic material shows clear discoloration and surface degradation as it approaches end of life; replace when surface becomes pitted or glazed to prevent nozzle short-circuit damage.

P80 Ceramic Shield Cup — Panasonic Air Plasma Torch

The P80/P-80 Ceramic Shield Cup is a critical safety and performance consumable for Panasonic and Panasonic-style air plasma cutting torches. Made from industrial-grade ceramic capable of withstanding direct plasma arc radiation and molten metal spatter, this shield cup provides essential electrical isolation between the negatively-charged nozzle tip and the grounded workpiece. A cracked, missing, or improperly seated shield cup is the single most common cause of catastrophic nozzle and electrode failure on P80 platform plasma cutters — replace at the first sign of surface pitting, glazing, or hairline cracking.

KEY FEATURES

Nozzle Electrical Isolation	Provides the critical insulating barrier between the nozzle tip and the workpiece; prevents double-arcing that can destroy both nozzle and electrode in a single pierce cycle.
Industrial-Grade Ceramic	High-temperature ceramic rated for sustained plasma arc exposure without cracking or spalling; far more durable than the plastic shield caps found on low-end consumer plasma cutters.
P80/P-80 Direct Fit	Threads onto Panasonic P80 and P-80 style torch heads; compatible with the full range of P80 consumables — electrodes, nozzle tips, swirl rings, and standoff guides.
Splatter Protection	Shields the precision nozzle orifice from molten metal splash-back during the initial pierce phase; critical for extending nozzle life when cutting dirty, painted, or rusty material.
Visual Wear Indication	Ceramic surface shows clear discoloration, glazing, and pitting as it degrades; easily inspected between consumable change cycles — replace when surface integrity is compromised.

SPECIFICATIONS

Type	Ceramic Shield Cup
Material	Industrial Ceramic (High-Temp Rated)
Compatible Torch	Panasonic P80 / P-80 Series
Function	Nozzle Insulation & Splatter Protection
Replacement Interval	Inspect at Each Consumable Change; Replace When Pitted or Glazed
Brand	WeldingStop

TYPICAL USES

Routine Consumable Maintenance — Replace whenever the electrode and nozzle are changed; a worn shield cup can ruin a fresh set of consumables within minutes of cutting.
Dirty Material Cutting — Essential splash protection when plasma cutting painted, rusted, galvanized, or oil-coated steel plate that produces heavy spatter during the pierce phase.
Production Plasma Cutting — High-duty-cycle shops go through shield cups faster than home users; keep a 5-pack on hand to avoid production stoppage for a $2 consumable.
Torch Rebuilding — Always replace the ceramic shield when rebuilding a used P80 torch head; old shields may have micro-cracks invisible to the naked eye.
Educational & Training Settings — Student operators frequently drag the torch and damage shields; affordable WeldingStop replacements keep training program consumable budgets under control.
