PLAXCON LASER WELDING MACHINE HANDHELD LASER WELDER MAUAL LASER CUTTING CLEANING SYSTEM Item NO.: LW-01

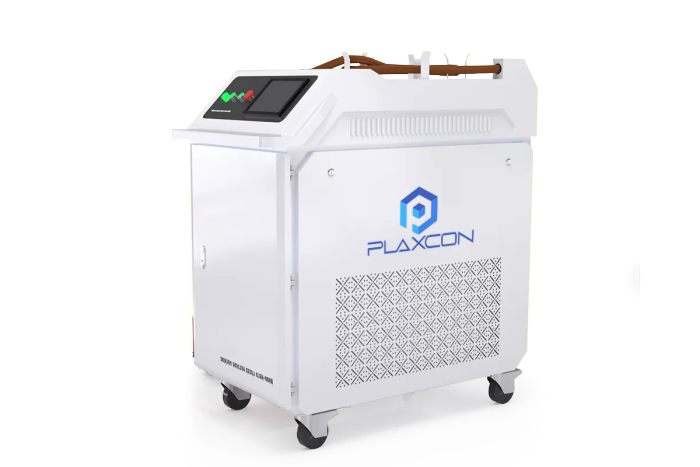

Water cooling Laser welding Machine

Laser Power

1000W

1500W

2000W

Laser Wavelength

1070NM±5%

Fiber Optic Cable Length

Standard 10 meters (customized length up to 15 meters)

Aiming & Positioning

Red light indicator + fixture

Power Consumption

4.5KW

5KW

7.5KW

Control Mode

TTL LEVEL/ GUI

Welding Speed

 0-120MM/S

Cooling System

  Integrated constant water cooling

Environment Temperature

 -5-40°C

Working Temperature

< 2%（Water tempeature 25 ± 1 °C）

Environment Humidity

<70% non-condensing

Welding Thickness

0.1-2.5mm

0.1-4mm

0.1-5mm

Welding Gap Requirements

 ≤0.2MM or less than wire diameter

Working Voltage

AV220V(1000W)

 AV220V(1500W)

AV380V(2000W)

Consumables

Protective Lenses, Welding Nozzles

Machine Dimension

980 x 420 x 710mm (L×W×H)

Machine Packing Size

1040 x 482 x 875mm (L×W×H)

Machine Net Weight

120KG

122KG

145KG

Machine Gross Weight

130KG

132KG

155KG

Wire Feeder Dimension

560 x 210 x 460mm (L×W×H)

Wire Feeder Packing Size

650 x 280 x 520mm (L×W×H)

Wire Feeder Net Weight

14.5KG

Wire Feeder Gross Weight

18.0KG
