V-WAC Undercut Welding Gauge - Weld Reinforcement Height & Undercut Depth Inch/Metric | WeldingStop
-
- Product Name: V-WAC Undercut Welding Gauge - Weld Reinforcement Height & Undercut Depth Inch/Metric | WeldingStop
- Item NO.: WSG-01016
- Weight: 0.04 kg = 0.0882 lb = 1.4110 oz
- Category: WELDING GAUGE > V-WAC Gauge
- Creation Time: 2015-04-19
- V
- Precision welding inspection measurement tool
- Durable stainless steel construction
- Easy-to-read graduated markings
- Ideal for weld quality control and inspection
- Compatible with standard welding inspection procedures

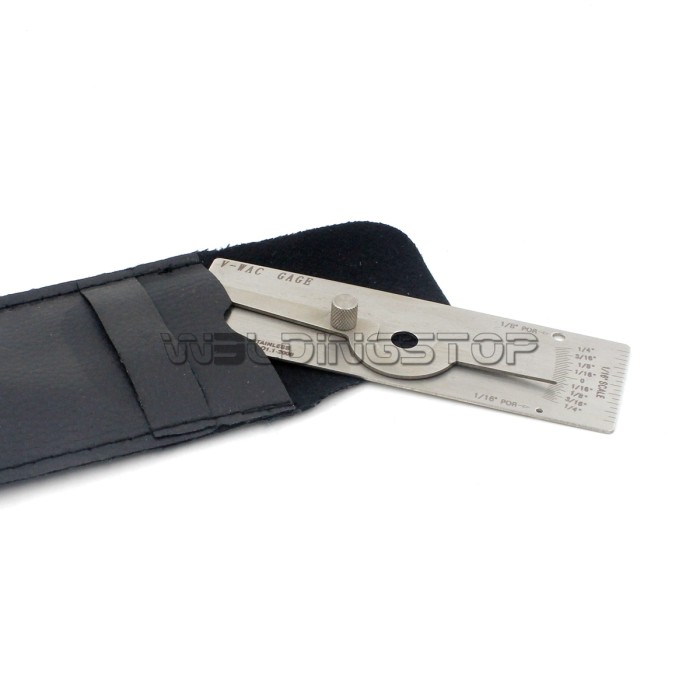

- Includes protective carry case for storage

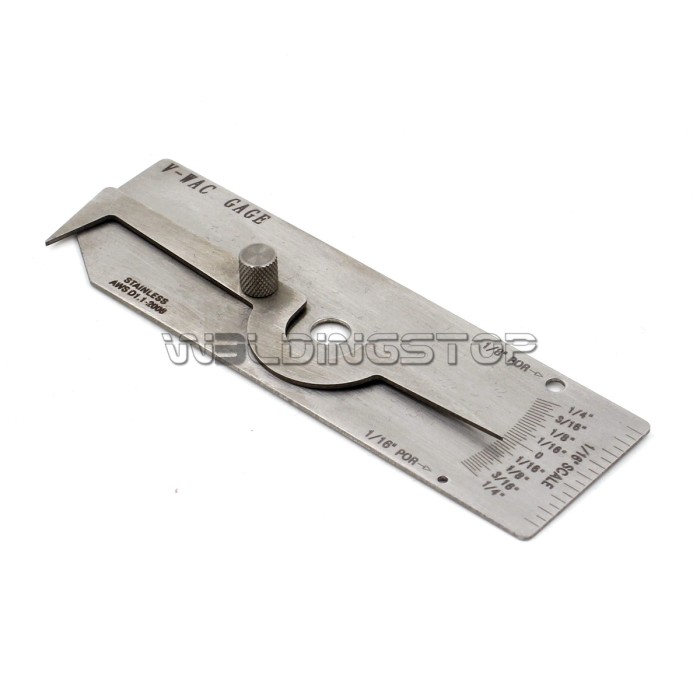

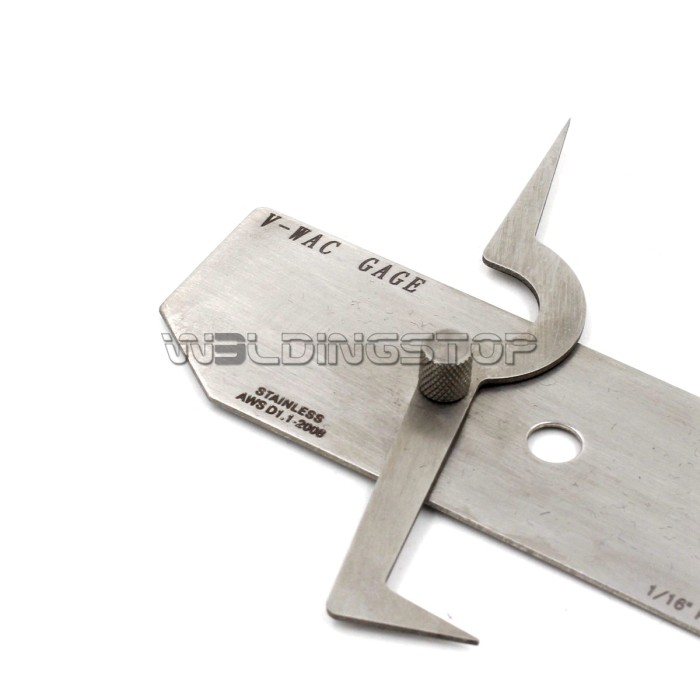

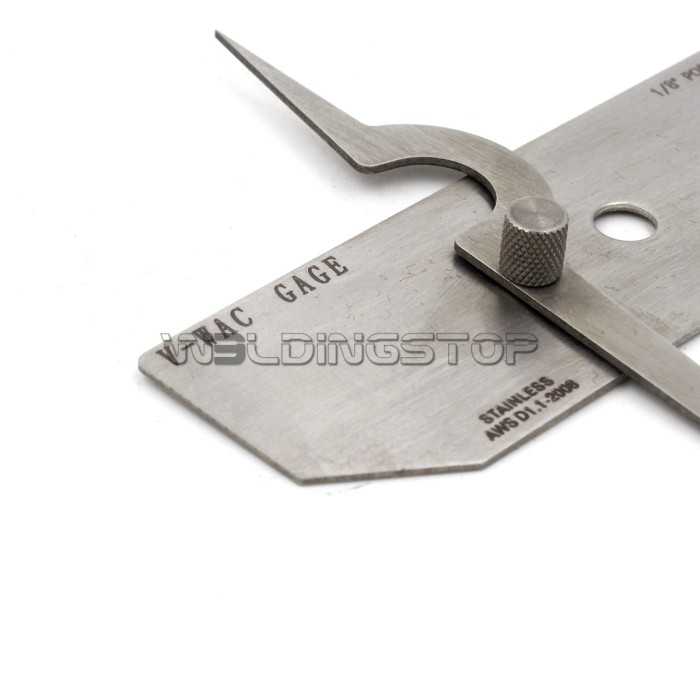

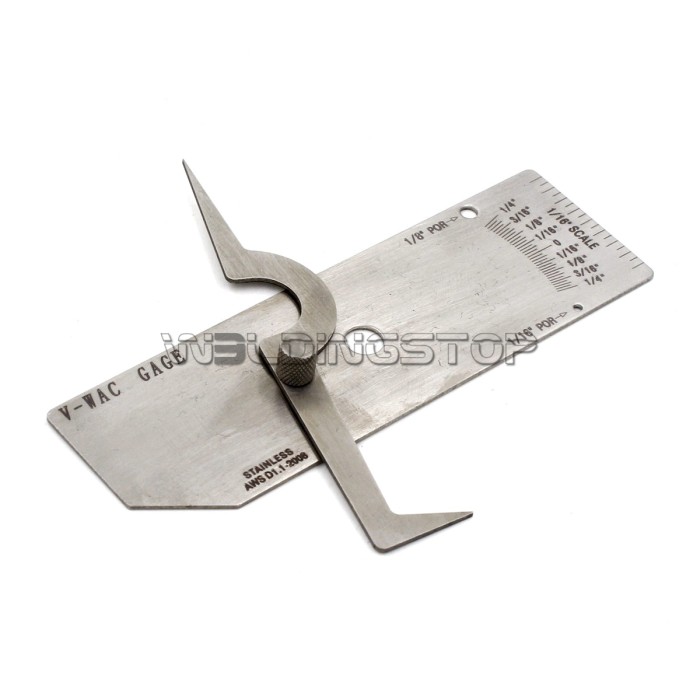

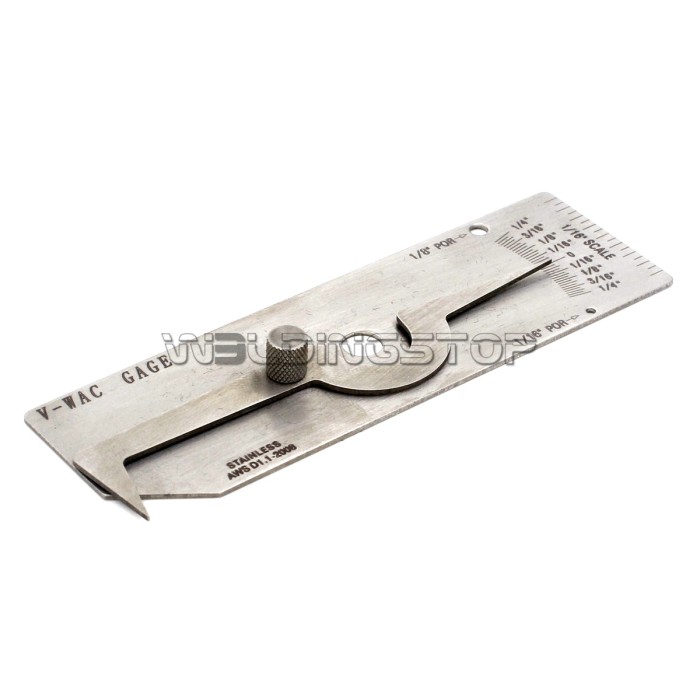

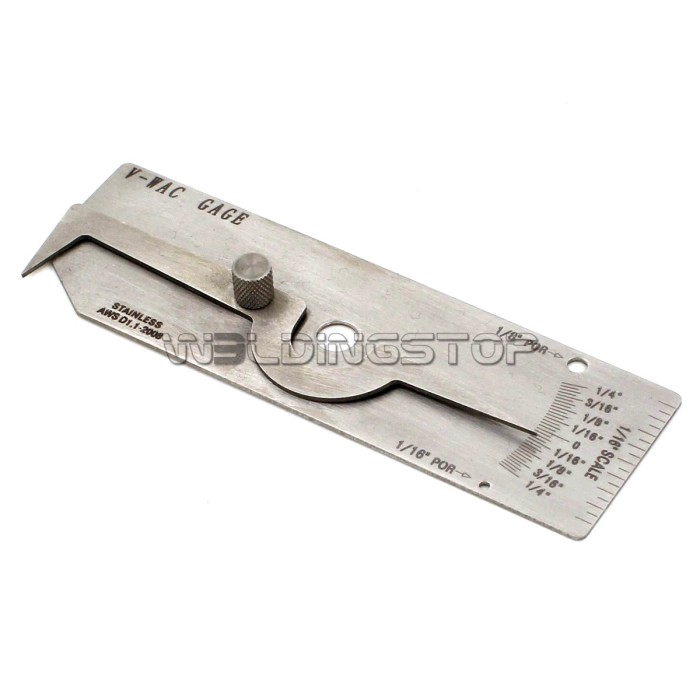

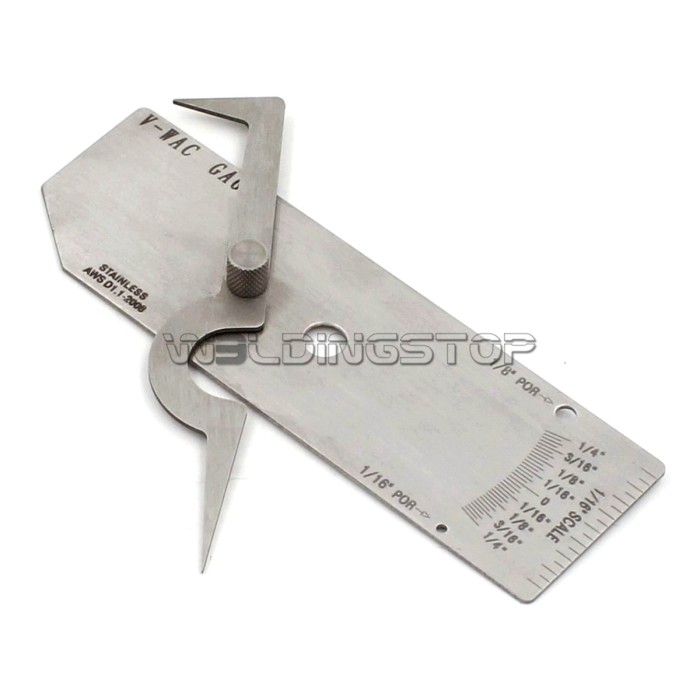

V-WAC Undercut Welding Gauge
Reinforcement Height & Undercut Depth | Model: WSG-01016
KEY FEATURES
DUAL FUNCTION
Measures both undercut depth and weld reinforcement height in one tool. Allows complete weld toe and crown inspection without switching instruments.
V-WAC MECHANISM

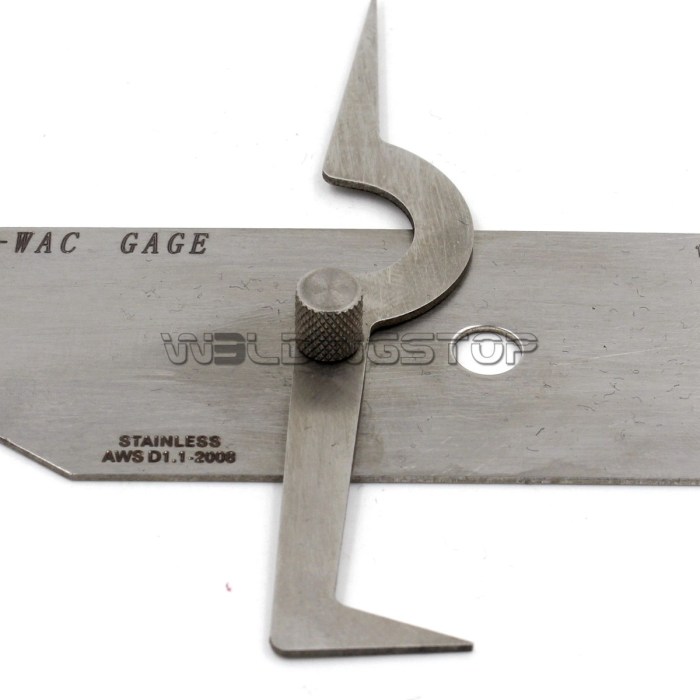

Patented V-WAC sliding mechanism provides smooth travel along the weld profile. Consistent reference surface ensures repeatable readings every time.
INCH & METRIC

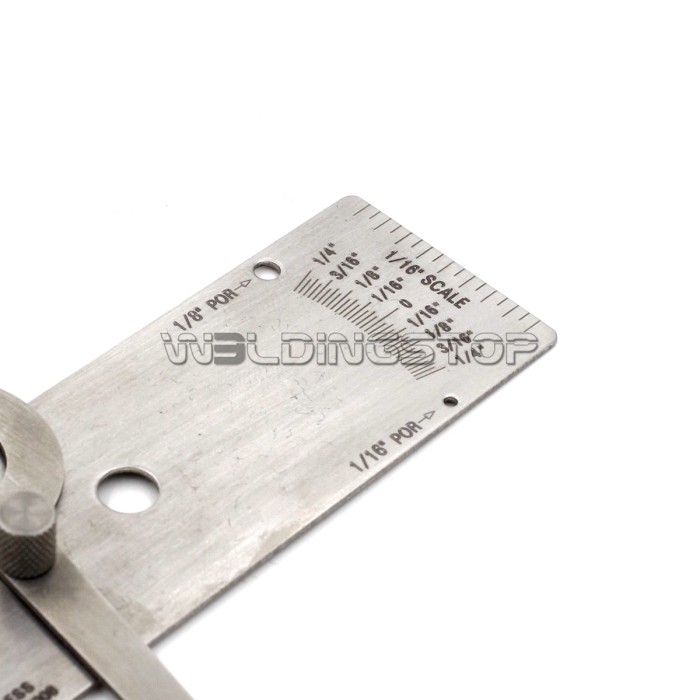

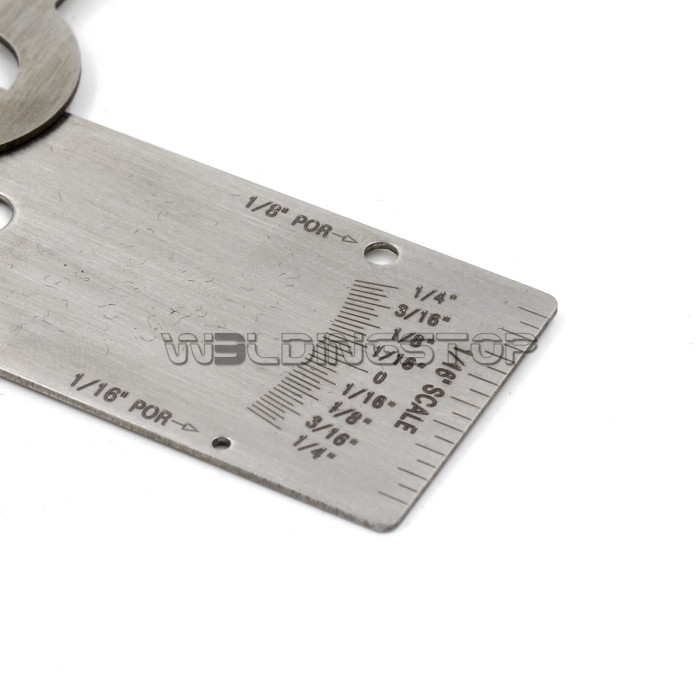

Dual-scale markings accommodate both US and metric inspection standards. Versatile for inspectors working across different code requirements.
REINFORCEMENT CHECK
Measures weld reinforcement height above base metal surface. Ensures weld crown height stays within acceptable limits for code compliance.
SPECIFICATIONS
Spec Detail Model V-WAC (WSG-01016) Measurement Undercut depth, reinforcement height Mechanism Sliding V-WAC Scales Inch and Metric Material Stainless steel APPLICATIONS
Weld Crown
Toe Defect
Code QC
Weld Profile
