Product Name: 53N88XL #10 Extra Long Alumina Ceramic Nozzle 5/8
Item NO.: WST-40061
Weight: 0.067 kg = 0.1477 lb = 2.3634 oz
Category: TIG TORCH & ACCESSORIES > Ceramic Cups and Nozzles
Creation Time: 2016-08-27

EXTRA LONG #10 (16mm/5/8 inch) - Large-diameter cup with extended length provides exceptional gas coverage for medium to high-amperage TIG welding on compact torch bodies.
COMPATIBLE WITH WP-9/20/25 - Standard 53N88XL fits all WP-9, WP-20, and WP-25 series TIG torches from Weldcraft, Lincoln, Miller, CK Worldwide, Everlast, and other brands.
SUPERIOR GAS COVERAGE - Extended profile and large diameter work together to deliver consistent laminar shielding gas flow, critical for welding reactive metals.
HIGH-PURITY ALUMINA - Premium ceramic material ensures excellent thermal shock resistance for reliable performance across extended TIG welding sessions.
WELDINGSTOP QUALITY - Professional-grade extra long large ceramic nozzle at exceptional value; trusted for demanding TIG applications requiring maximum gas shielding.

53N88XL Extra Long Alumina Ceramic Nozzle 5/8in 16mm - WP-9/20/25

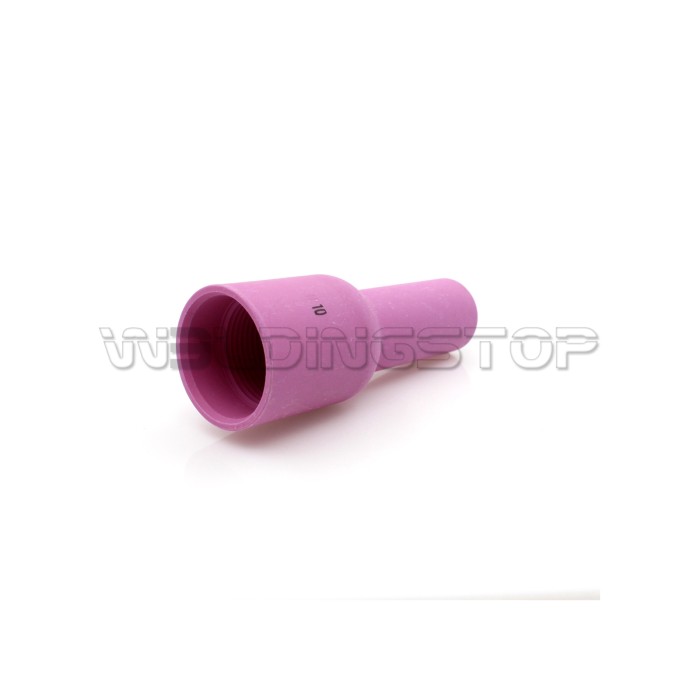

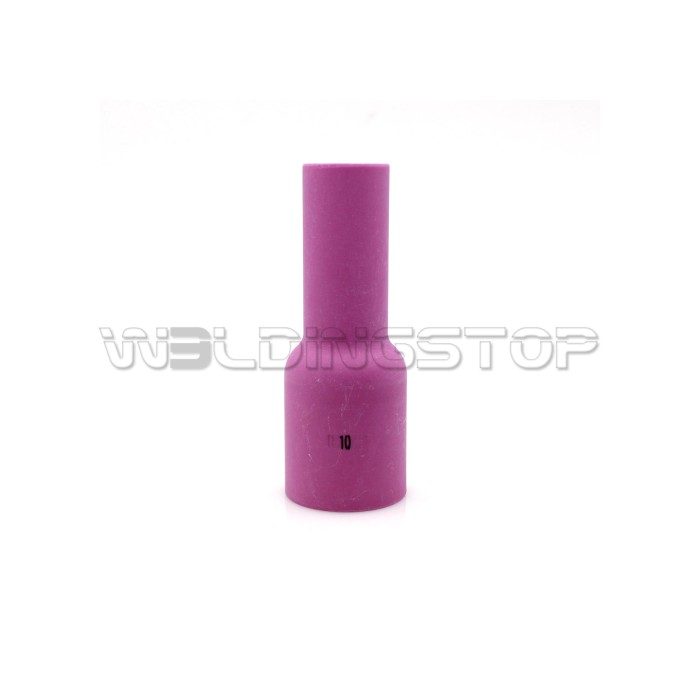

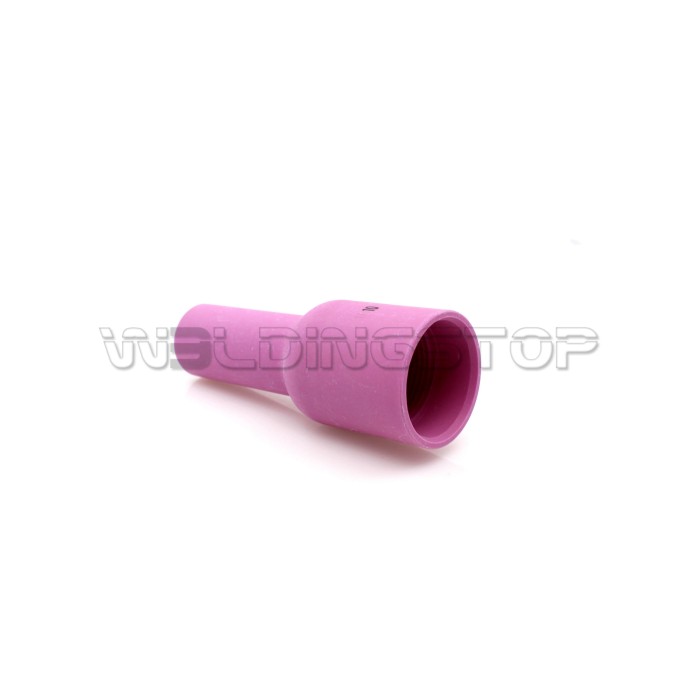

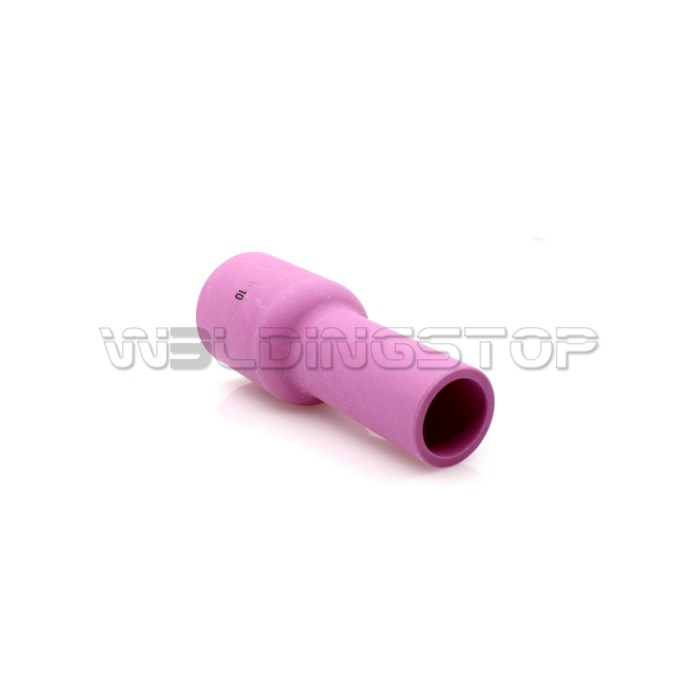

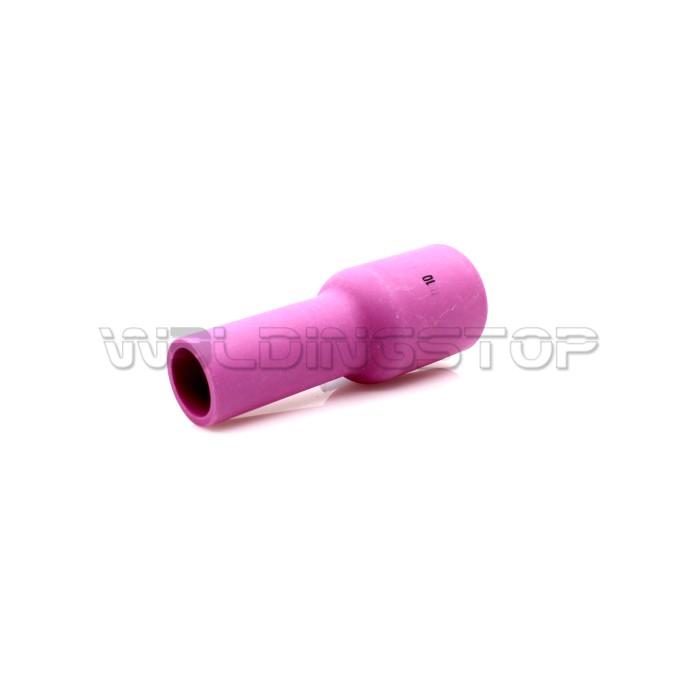

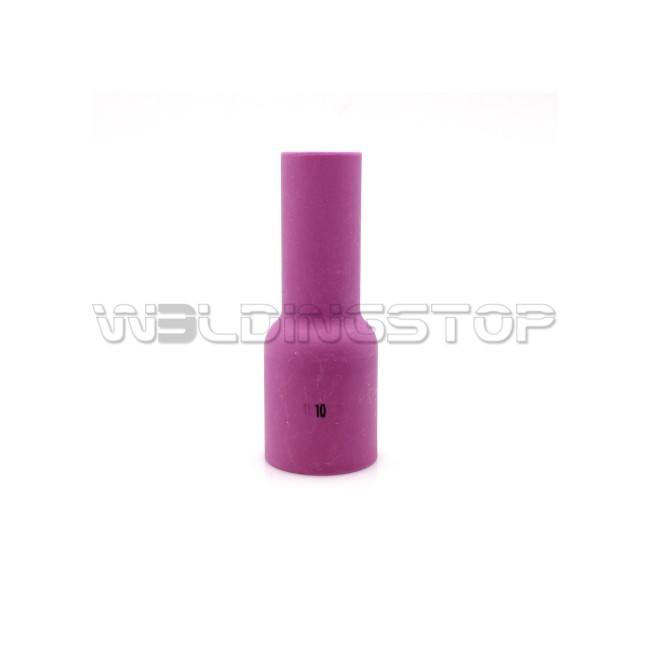

The 53N88XL #10 Alumina Ceramic Nozzle is a extra long TIG torch cup for WP-9/20/25 series torches. 5/8in 16mm diameter. Manufactured from high-purity alumina ceramic for excellent heat resistance and electrical insulation.

KEY FEATURES

#10 (5/8in 16mm) Diameter	Extra Long cup size for TIG welding applications on WP-9/20/25 series torches.
Compatible Torch Models	Standard fit for WP-9/20/25 series TIG torches from Weldcraft, Lincoln, Miller, CK, Everlast, and other brands.
High-Purity Alumina	Premium ceramic resists thermal shock and maintains dimensional stability under TIG arc temperatures.
Consistent Gas Coverage	Precision-machined for uniform shielding gas flow and stable arc characteristics.
WeldingStop Quality	Professional-grade extra long ceramic nozzle at exceptional value for TIG welding.

SPECIFICATIONS

Reference Code	53N88XL
Cup Size	#10
Diameter	5/8in 16mm
Type	Extra Long
Compatible Torches	WP-9/20/25
Material	High-Purity Alumina Ceramic
Brand	WeldingStop

TYPICAL USES

General Fabrication - Essential TIG consumable for everyday welding on steel, stainless, aluminum, and other common materials.
Production Welding - Reliable performance for high-volume manufacturing and repetitive TIG welding applications.
Field & Repair Service - Keep spares on hand for mobile welding rigs and on-site repair work.
Home Workshop & DIY - Affordable professional-grade consumable for hobby welders and home fabrication.
Welding Education - Cost-effective bulk consumable for school training programs and certification courses.
