Radius gage Gauge Fillet set R15-25mm Concave Convex arc end internal external Item NO: WSG-02008

US$ 2.00
Quantity:
Shipping Cost:
Estimate Shipping Cost

NB: Please read list details, questions onapplication & compatibility please contact up without hesitation!!

Product Name Radius gage Gauge Fillet set R15-25mm Concave Convex arc end internal external
Item NO WSG-02008
Weight 0.0800 kg = 0.1764 lb = 2.8219 oz
Category Inspection Tool > Radius Gauge
Brand WeldingStop
Creation time 2015-04-23





Item Name:



Radius Gauge Set 15-25mm Fillet Gauge 32 Pieces Measure Tool Metric Reading Antirust Material



List Included:



1 piece x Radius Gauge R15-25mm      WSG-02008



Bullet Point:



Radius gauge is very handy for checking internal and external radius

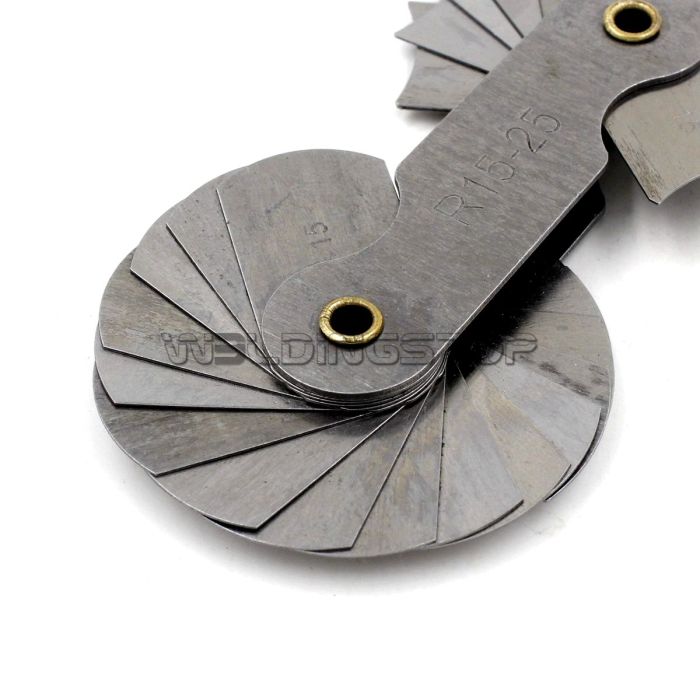

Each end of the gauge contains 16 blades,32 pieces of different graduations blades has different size to measure radius

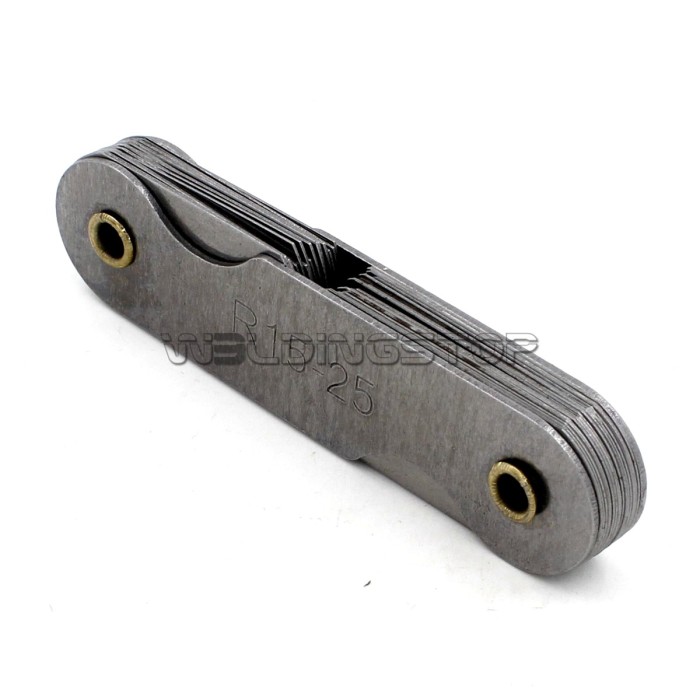

The gauge is simple in structure and can be folded, can be put in shirt pocket

The Numbers are laser engraving for clarity and easier reading

With some lubricating oil on it to protect it from protect it from rust

Packed in plastic bag for the convenience of storage and carrying



Instruction for use:



16pcs concave blades and 16pcs convex blades on each radius gauge, the scale on leaves is15.0 / 15.5 / 16.0 / 16.5 / 17.0 / 17.5 / 18.0 / 18.5 / 19.0 / 19.5 / 20.0 / 21 / 22 / 23 / 24 / 25mm



More Details:



WS SKU: WSG-02008

Brand: WeldingStop

Item Package Quantity: 1 piece



Maintenance Method:

     1.Welding inspection ruler shall not be piled together with other metal tools,in case it is distorted.Friction between metal parts may cause malfunction and blur scales.

     2.Do not wipe scale area with amyl acetate etc.





Item Name

WS SKU

Measure Range(Metric)



Radius Gauge S/S

WSG-02005

0.3-1.5mm

BUY NOW!

Radius Gauge

WSG-02006

1-7mm

BUY NOW!

Radius Gauge S/S

WSG-02012

1-7mm

BUY NOW!

Radius Gauge

WSG-02007

7-14.5mm

BUY NOW!

Radius Gauge S/S

WSG-02013

7.5-15mm

BUY NOW!

Radius Gauge

WSG-02008

15-25mm

BUY NOW!

Radius Gauge S/S

WSG-02014

15-25mm

BUY NOW!

Radius Gauge

WSG-02009

25-50mm

BUY NOW!

Radius Gauge S/S

WSG-02015

25-50mm

BUY NOW!

Radius Gauge

WSG-02011

26-80mm

BUY NOW!

Radius Gauge

WSG-02010

52-100mm

BUY NOW!
