S/S Radius gage Gauge Fillet 32pcs set R7.5-15mm Lock Device MEASUREMENT Tools Item NO.: WSG-02013

Minimum Order Quantity:1 piece

Item Name:

Radius Gauge 32pcs blades gage set 7.5-15mm Fillet Gauge Stainless Steel in Metric

List Included:

1 piece x Radius Gauge 7.5-15mm      WSG-02013

Bullet Point:

√Useful for tool and die makers, machinists, screw machine operators and other mechanics to layout and check radii of tools, dies, etc

√Package includes: Radius Gauge R7.5-15mm 1 set

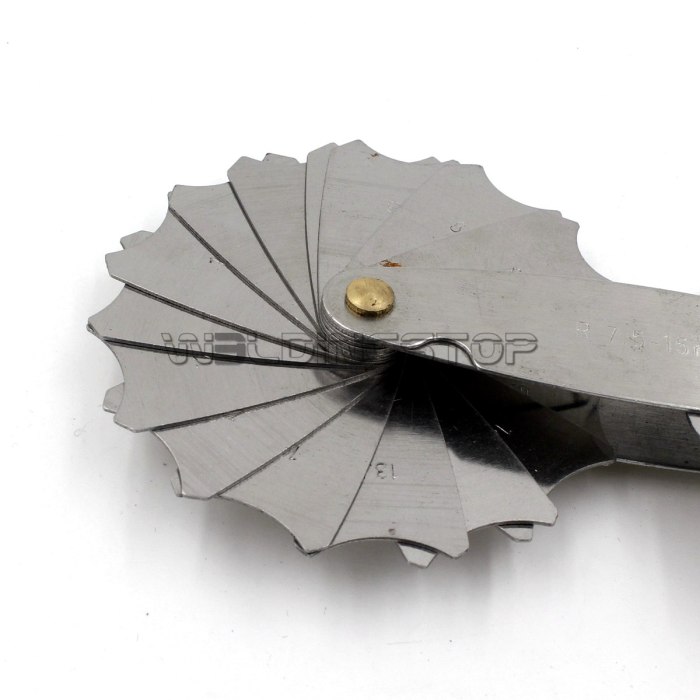

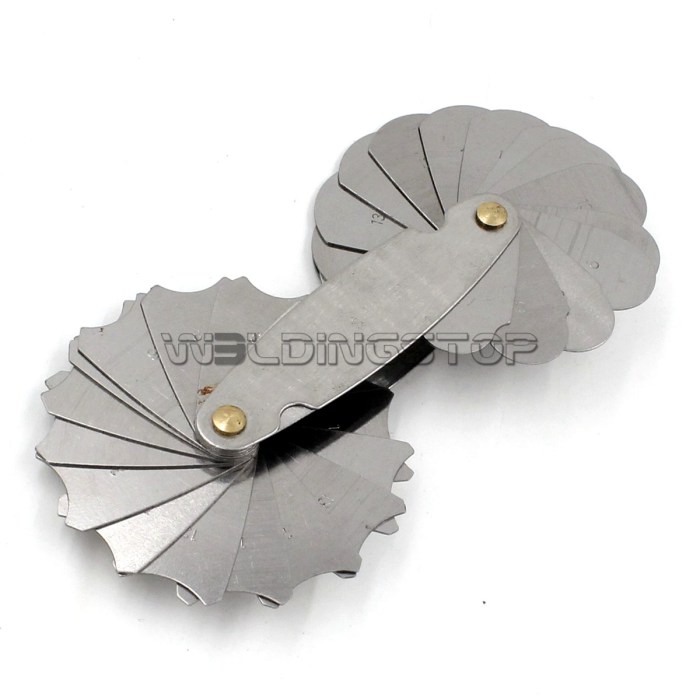

√Radius gauge is designed for concave and convex shape for easy measurement and reading

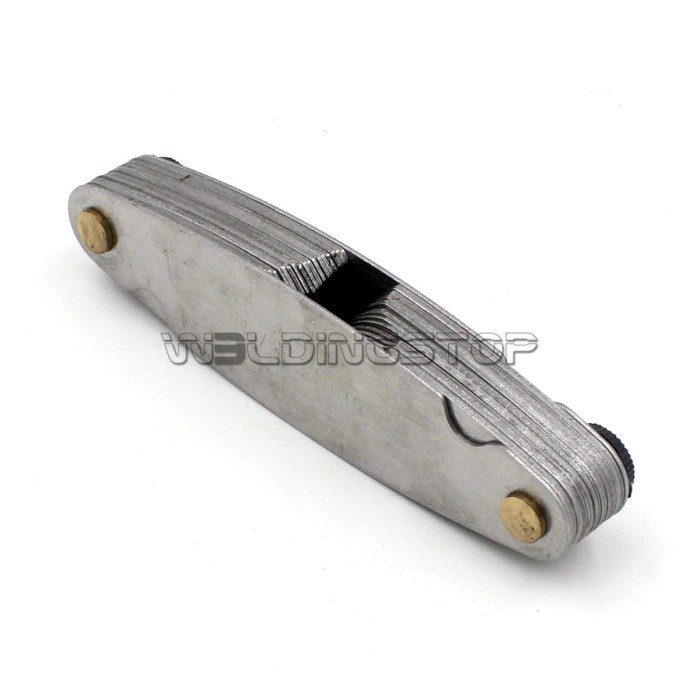

√Each end of the gauge contains 17 blades(internal+external),each end is locked in a screw, every piece can be disassemble

√Laser printing technology marks the scale to make it clearer

Instruction for use:

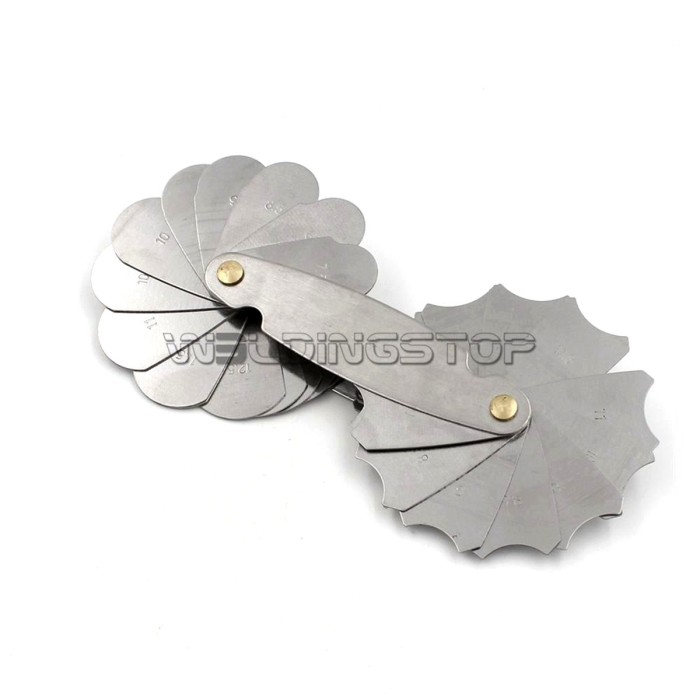

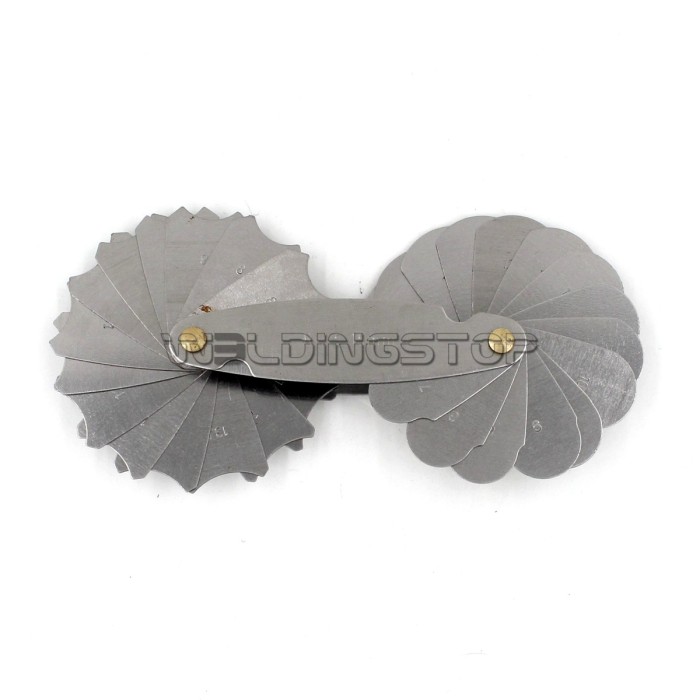

16pcs concave blades and 16pcs convex blades on each radius gauge, the scale on leaves is7.5 / 8 / 8.5 / 9 / 9.5 / 10.0 / 10.5 / 11 / 11.5 / 12 / 12.5 / 13 / 13.5 / 14 / 14.5 / 15.0mm

More Details:

WS SKU: WSG-02013

Brand: WeldingStop

Item Package Quantity: 1 piece

Maintenance Method:

     1.Welding inspection ruler shall not be piled together with other metal tools,in case it is distorted.Friction between metal parts may cause malfunction and blur scales.

     2.Do not wipe scale area with amyl acetate etc.
