Product Name Screw Gauge set Thread Pitch GAGE 52 blades 60° metric 55° witworth Lock device
Item NO. WSG-02000
Weight 0.08 kg = 0.1764 lb = 2.8219 oz
Category Inspection Tool > Thread Gauge
Brand WeldingStop
Creation Time 2015-04-23




Item Name:

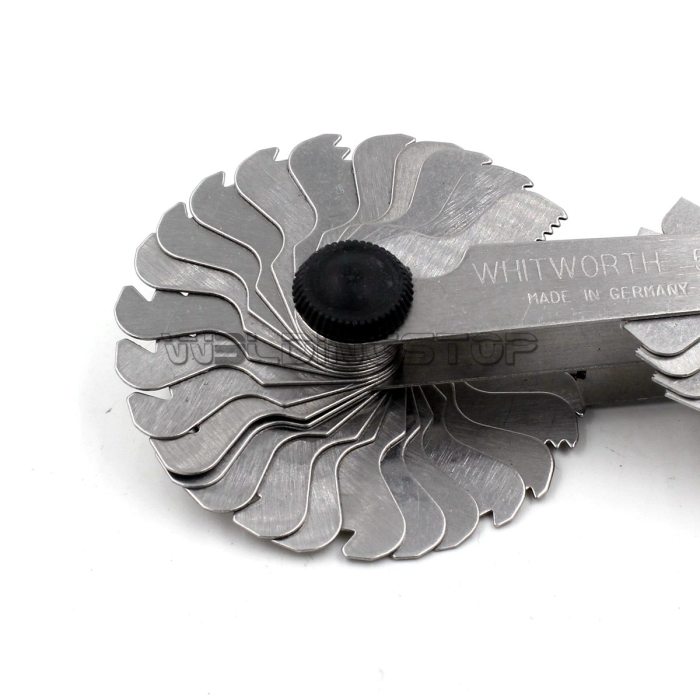

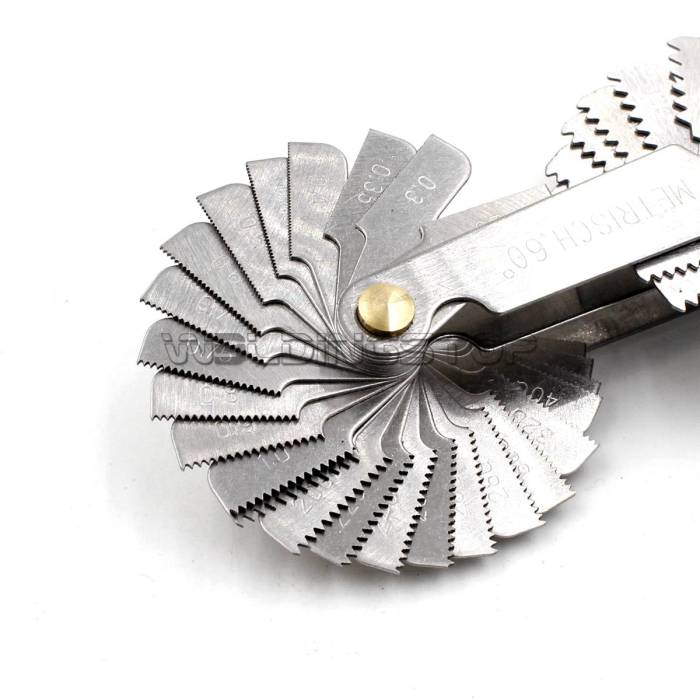

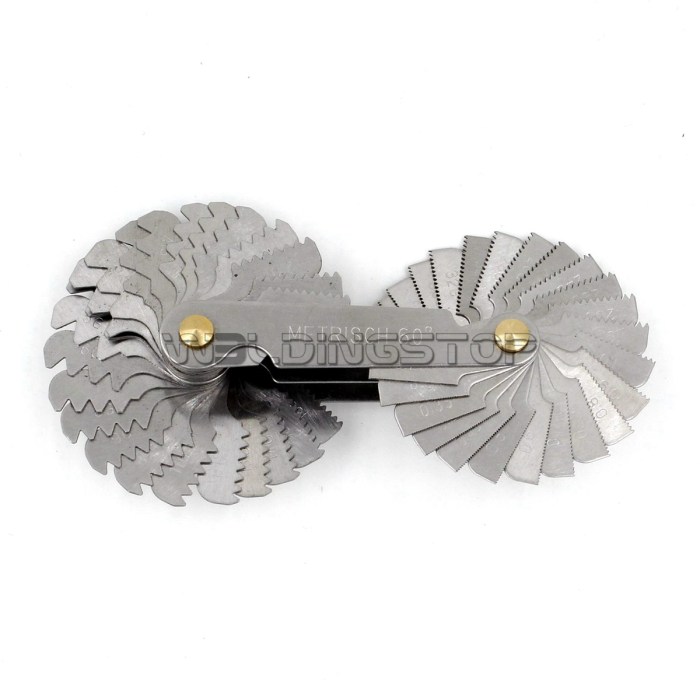

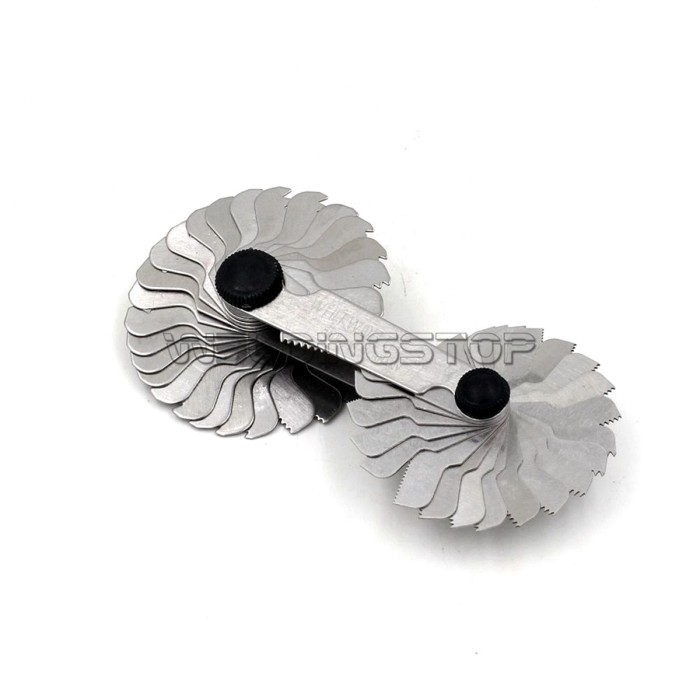

Screw Gauge Set Metric 60 Degree & Whitworth 55 Degree Thread Pitch Gauge 52 blades Lock Device Stainless Steel



List Included:



1 piece x Screw pitch gauge      WSG-02000



Bullet Point:



Screw pitch gauge for checking the pitch of screw thread,52 pieces of different scale on 1 set

The gauge can both measure metric 60 degree and Whitworth 55 degree.

Blades are threaded with locking device, every piece can be disassemble.

The gauge is simple in structure and can be folded, can be put in shirt pocket.

Made of stainless steel to ensure durability, not easily to rust and bend.



Instruction for use:



Metric 60 Degree:

0.25 / 0.3 / 0.35 / 0.4 / 0.45 / 0.5 / 0.6 / 0.7 / 0.75 / 0.8 / 0.9 / 1.0 / 1.25 / 1.5 / 1.75 / 2.0 / 2.5 / 3.0 / 3.5 / 4.0 / 4.5 / 5.0 / 5.5 / 6.0

Whitworth 55 Degree:

4 / 4.5 / 5 / 6 / 7 / 8 / 9 / 10 / 11 / 12 / 13 / 14 / 16 / 18 / 19 / 20 / 22 / 24 / 25 / 26 / 28 / 30 / 32 / 36 / 40 / 48 / 60 / 62G



More Details:



WS SKU: WSG-02000

Brand: WeldingStop

Item Package Quantity: 1 piece



Maintenance Method:

     1.Welding inspection ruler shall not be piled together with other metal tools,in case it is distorted.Friction between metal parts may cause malfunction and blur scales.

     2.Do not wipe scale area with amyl acetate etc.




Item Name

WS SKU

Reading in Metric

Reading in Whitworth



Screw Pitch Gauge

WSG-02000

0.25-6.0mm

4-62G

BUY NOW!

Screw Pitch Gauge

WSG-02001

--

4-62G

BUY NOW!

Screw Pitch Gauge

WSG-02002

0.25-6.0mm

--

BUY NOW!
