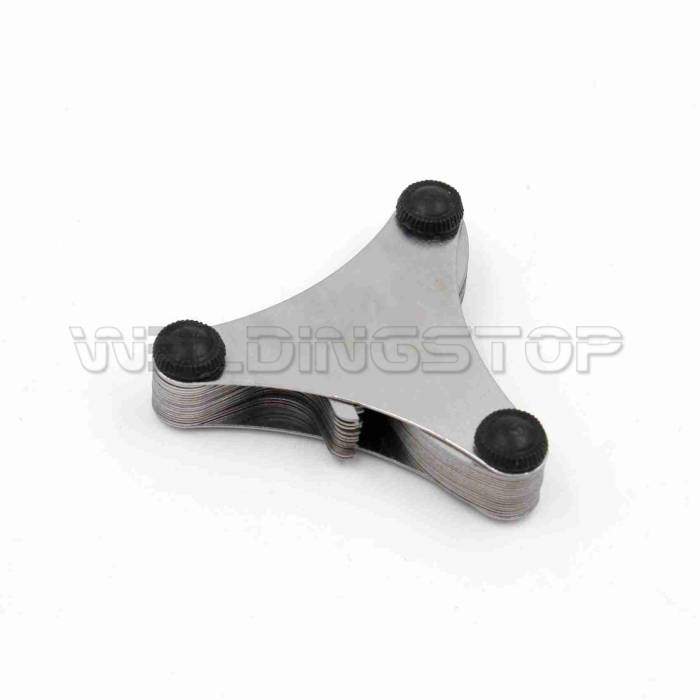

Screw Thread Pitch Gauge Tool Set Thread Pitch Gauge Measuring Tool US System 60 Degree 51pcs

Copy and share this link on social network or send it to your friends

Copy

Screw Thread Pitch Gauge Tool Set Thread Pitch Gauge Measuring Tool US System 60 Degree 51pcs Item NO.: WSG-02102

Write a Review
£ 4.79
Quantity:
Shipping Cost:
Estimate Shipping Cost

NB: Please read list details, any questions on application & compatibility please contact us without hesitation!!

Product Name Screw Thread Pitch Gauge Tool Set Thread Pitch Gauge Measuring Tool US System 60 Degree 51pcs
Item NO. WSG-02102
Weight 0.025 kg = 0.0551 lb = 0.8818 oz
Category Inspection Tool > Thread Gauge
Brand WeldingStop
Creation Time 2019-05-25




Item Name

Screw Pitch Gauge / Thread Pitch Gauge

Measure Standard

SAE (US Standard)

Style

US System (51 pcs)

Number of Leaves

51 Pieces

Thread Degree

60°

Measuring Range

4-84

Thread Size

4,4.5,5,5.5,6,7,8,9,10,11,11.5,12,13,14,15,16,18,20,22,24,26

27,28,30,32,34,36,38,40,42,44,46,48,50,52,54,56,58,60,62,64

66,68,70,72,74,76,78,80,82,84

Material

Stainless Steel

WS-SKU

WSG-02102

Manufacturer

WeldingStop



Function

Accurately measures internal and external screw threads with thread blades of varied size

Material and Surface Finishing

Made of stainless steel and processed with chrome finish, it combines high strength, good resilience, elegant appearance

Most importantly, it won't get rusted easily and owns long lasting durability

Precise Measurements & Clear Scale

The toothed edges are sharply defined and the numbers are stamped and easy to read

Easy to Use

Designed with a hole on each end, from where you press the tooth gauge, you can easily rotate the thread blades

Item Protection

Each contained in a thick plastic bag which will protect the pitch gauge from water and stain

Measure Method

This thread gauge is applied to measure thread and external thread tooth pitch

Application Field

It is useful for checking tool angle while cutting threads in metal turning lathes

Measure Range

US 60° Thread gauge the degree of tooth-shaped model; Measuring range: 4-84

Narrow-leaved designed to measure the external and internal threads - even in small holes




Measuring the Thread Pitch

Choosing a suitable gadget for the measure target until they match perfectly, the marked number on the gadget is the data you searching for

Ensuring Thread Tooth Angle

Choosing a suitable gadget for the target, if there is no gap translucent, tooth-shaped angle measured thread is correct

If there is uneven light transmission gap phenomenon, it shows the measured thread tooth shape is not accurate
