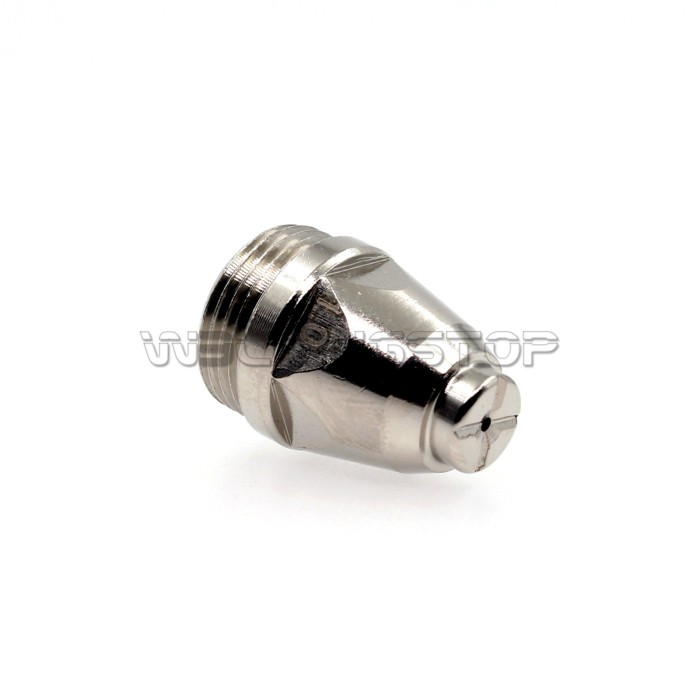

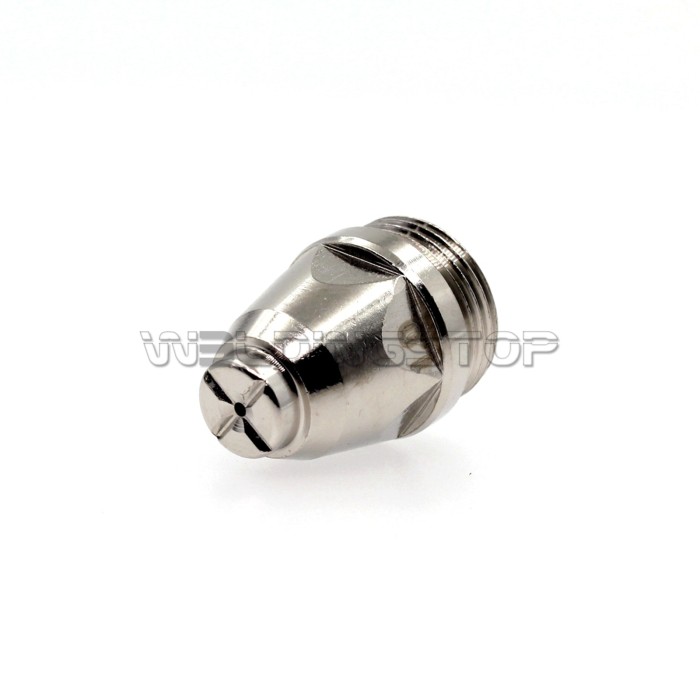

Product Name: W.S Plasma cutting Tip Nozzles 1.0mm AG60 SG55 WSD60 Torch consumables
Item NO.: WSP-04012
Weight: 0.033 kg = 0.0728 lb = 1.1640 oz
Category: PLASMA TORCH & CONSUMABLES > AG-60/SG-55 Plasma Torch
Creation Time: 2016-07-25

1.0mm PRECISION ORIFICE - Optimized nozzle geometry for 40-60A pilot arc plasma cutting on AG-60, SG-55, and WSD60 torch platforms; delivers clean, focused cuts on mild steel up to approximately 8mm at 50A.
UNIVERSAL AG-60/SG-55 FIT - Direct replacement nozzle tip for AG-60, SG-55, and WSD-60 pilot arc plasma torches found on CUT50, CUT50D, CUT50DP, Cut60, LGK60, and equivalent 50-amp air plasma cutters.
COPPER ALLOY CONSTRUCTION - High-conductivity copper rapidly dissipates arc heat from the orifice; maintains dimensional stability during extended cutting sessions and resists erosion better than brass alternatives.
PILOT ARC COMPATIBLE - Designed for pilot arc plasma torches that strike without workpiece contact; cuts painted, rusty, and expanded metal surfaces that high-frequency start torches cannot reliably pierce.
WELDINGSTOP OEM QUALITY - Professional-grade AG-60/SG-55 nozzle manufactured to OEM-equivalent tolerances at exceptional value; keep a 10-pack on hand for your 50-amp plasma cutter.

AG-60 SG-55 Nozzle Tip 1.0mm — WSD60 Pilot Arc

The AG-60 / SG-55 Nozzle Tip 1.0mm is a replacement plasma cutting nozzle for AG-60, SG-55, and WSD60 pilot arc plasma torches. This 1.0mm precision nozzle is the primary wear consumable on 40-60 amp air plasma cutters including CUT50, CUT50D, CUT50DP, Cut60, and LGK60. Copper alloy body with optimized orifice geometry for clean, focused cuts on mild steel, stainless, and aluminum. Pilot arc design enables cutting without workpiece contact — ideal for painted, rusty, and expanded metal.

KEY FEATURES

1.0mm Precision Orifice	Optimized nozzle geometry for 40-60A plasma cutting on AG-60/SG-55/WSD60 torches; clean cuts on mild steel up to ~8mm at 50A.
AG-60/SG-55/WSD60 Compatible	Direct drop-in replacement for AG-60, SG-55, and WSD60 pilot arc plasma torches on CUT50, LGK60, and equivalent 50A cutters.
Copper Alloy Body	High-conductivity copper dissipates arc heat and maintains orifice precision during extended cutting runs.
Pilot Arc Capable	Engineered for pilot arc torches that strike without workpiece contact; cuts painted and rusty metal reliably.
WeldingStop OEM Value	Professional-grade AG-60 nozzle at a fraction of OEM pricing; keep spares for your 50A plasma cutter.

SPECIFICATIONS

Reference	AG-60 / SG-55 / WSD60
Type	Plasma Tip Nozzle
Orifice	1.0mm
Amperage Range	40-60A
Start Type	Pilot Arc
Compatible Cutters	CUT50, CUT50D, Cut60, LGK60 & Equivalents
Brand	WeldingStop

TYPICAL USES

Auto Body & Collision — Pilot arc reliably cuts rusted panels and frame sections on CUT50/60 plasma cutters with AG-60 torches.
HVAC Sheet Metal — Clean 1.0mm orifice cuts galvanized ductwork and vent panels with minimal dross at 40A.
Farm & Equipment Repair — Keep spare nozzles for your 50A plasma cutter in the shop for cutting brackets and worn implement parts.
DIY & Home Workshop — Affordable replacement nozzle for hobbyist plasma cutters using AG-60/SG-55 torch platforms.
Salvage & Scrap Cutting — Pilot arc ignition handles dirty and painted scrap metal that high-frequency start systems cannot pierce.
