Bridge CAM Gauge - Welding Seam Reinforcement/Fillet Throat/Leg Length Inspection | WeldingStop
-
- Product Name: Bridge CAM Gauge - Welding Seam Reinforcement/Fillet Throat/Leg Length Inspection | WeldingStop
- Item NO.: WSG-01006
- Weight: 0.14 kg = 0.3086 lb = 4.9384 oz
- Category: WELDING GAUGE > Bridge CAM Gauge
- Creation Time: 2015-04-19
- Bridge CAM Gauge Welding Seam Reinforcement/Fillet Throat/Leg Length Bevel Angle in Inch/mm MG
- Precision welding inspection measurement tool
- Durable stainless steel construction
- Easy-to-read graduated markings
- Ideal for weld quality control and inspection
- Compatible with standard welding inspection procedures

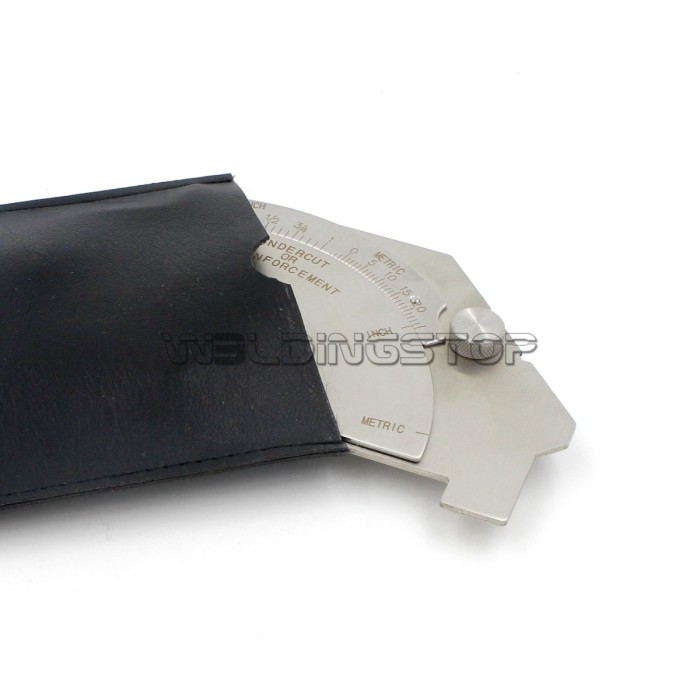

- Includes protective carry case for storage

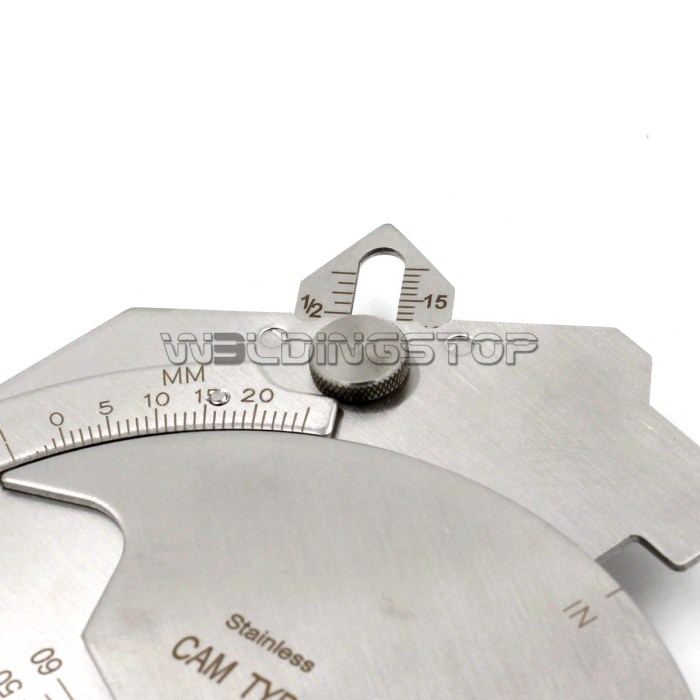

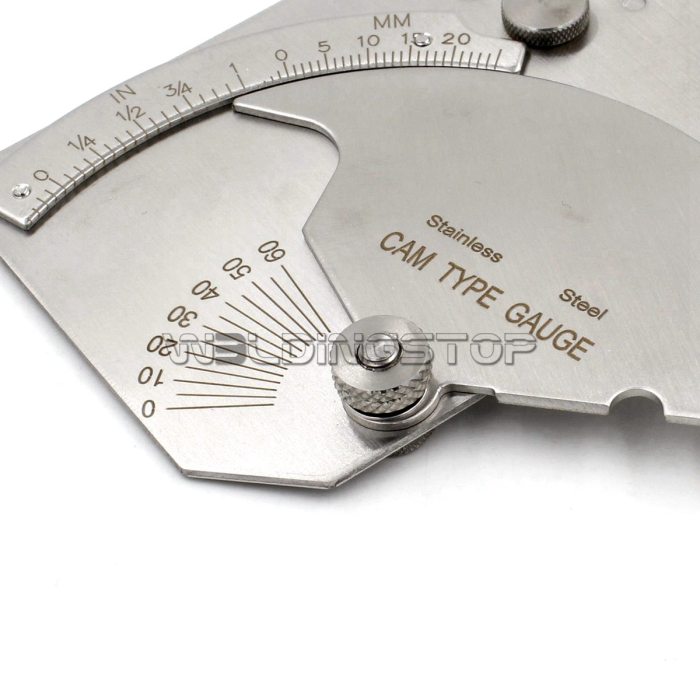

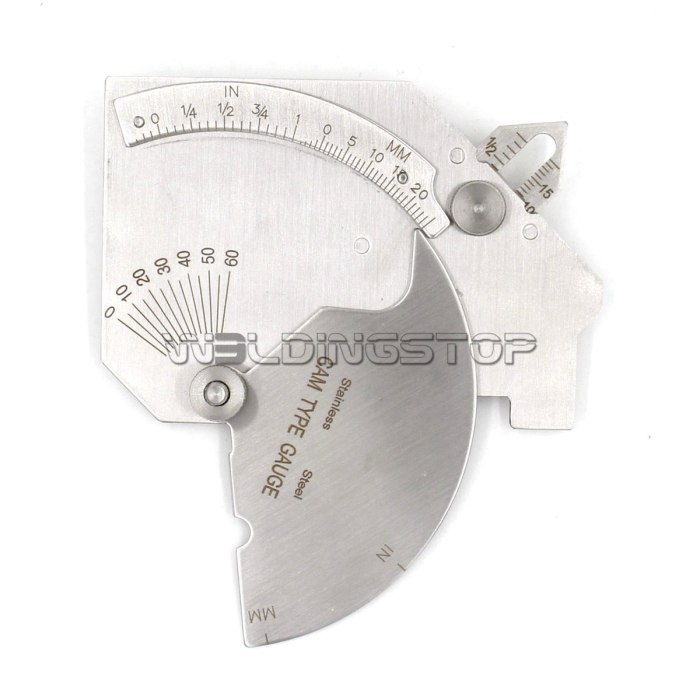

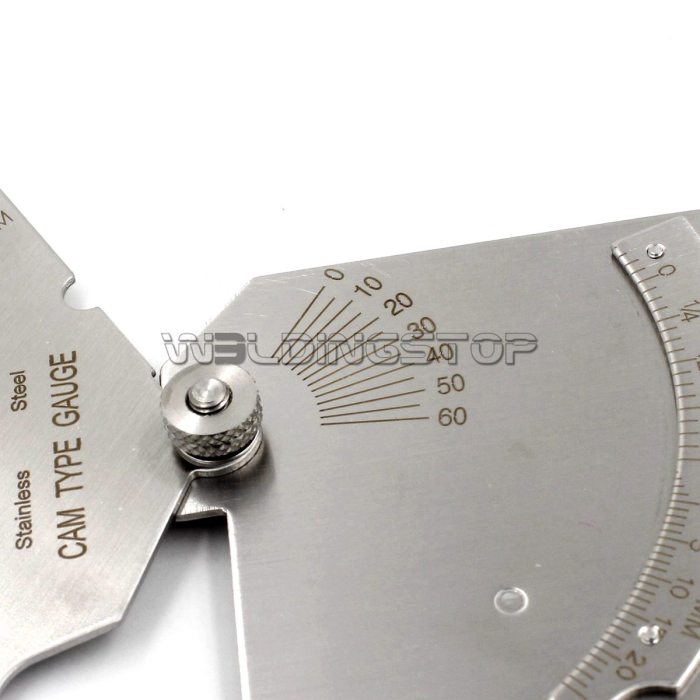

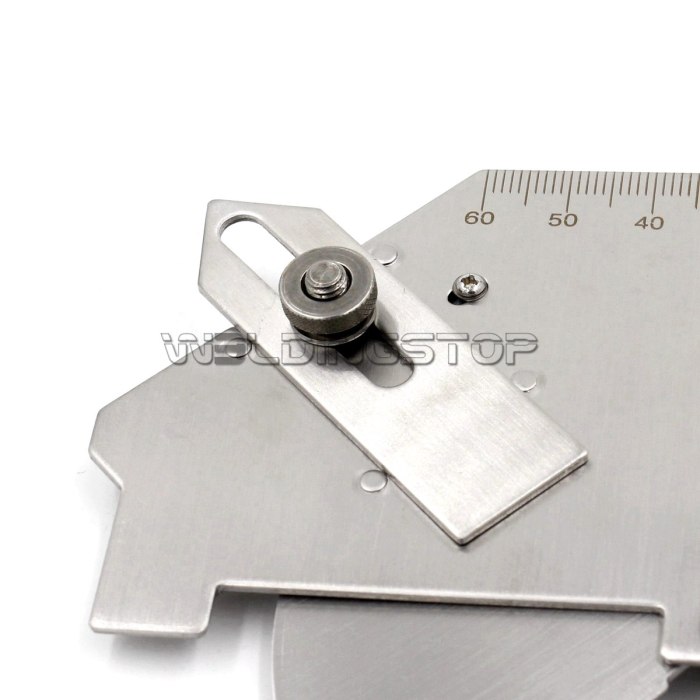

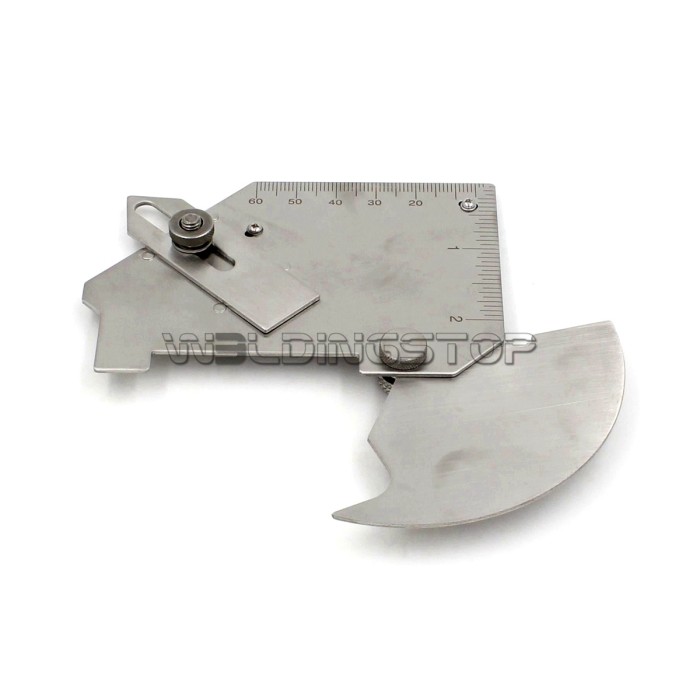

Bridge CAM Gauge
Seam Reinforcement, Fillet Throat & Leg Length | Model: WSG-01006
KEY FEATURES
BRIDGE CAM MECHANISM
Rotating cam-style measuring head bridges the weld joint for quick, repeatable readings. Eliminates guesswork in positioning the gauge on the weld seam.
VERSATILE MEASUREMENTS
Measures seam reinforcement height, fillet throat depth, and leg length with a single tool. Replaces multiple dedicated gauges in your inspection kit.
DIRECT READING
Scale provides direct measurement readings without requiring calculations. Reduces inspection time and minimizes reading errors on the job.
DURABLE CONSTRUCTION
Made from hardened stainless steel with precision-ground surfaces. Maintains accuracy through repeated daily use in fabrication shops and field inspections.
SPECIFICATIONS
Spec Detail Model Bridge CAM (WSG-01006) Measurement Type Reinforcement height, fillet throat, leg length Mechanism Rotating bridge cam Material Hardened stainless steel Reading Direct dial scale APPLICATIONS
Bridge Fab.
Structural Steel
Pressure Vessel
QC Inspection
