MG-8-B Bridge CAM Welding Gauge - Fillet Throat Gage Inspection Tool Inch/Metric | WeldingStop
-
- Product Name: MG-8-B Bridge CAM Welding Gauge - Fillet Throat Gage Inspection Tool Inch/Metric | WeldingStop
- Item NO.: WSG-01007
- Weight: 0.14 kg = 0.3086 lb = 4.9384 oz
- Category: WELDING GAUGE > Bridge CAM Gauge
- Brand: WeldingStop
- Creation Time: 2015-04-19
- MG-8-B Bridge CAM welding gauge for fillet throat inspection
- Precision weld measurement tool for quality control
- Stainless steel construction with easy-read markings
- Measures fillet throat, leg length, and reinforcement
- Ideal for welding inspectors and quality assurance
- Durable build for daily shop and field use
- Includes protective storage case

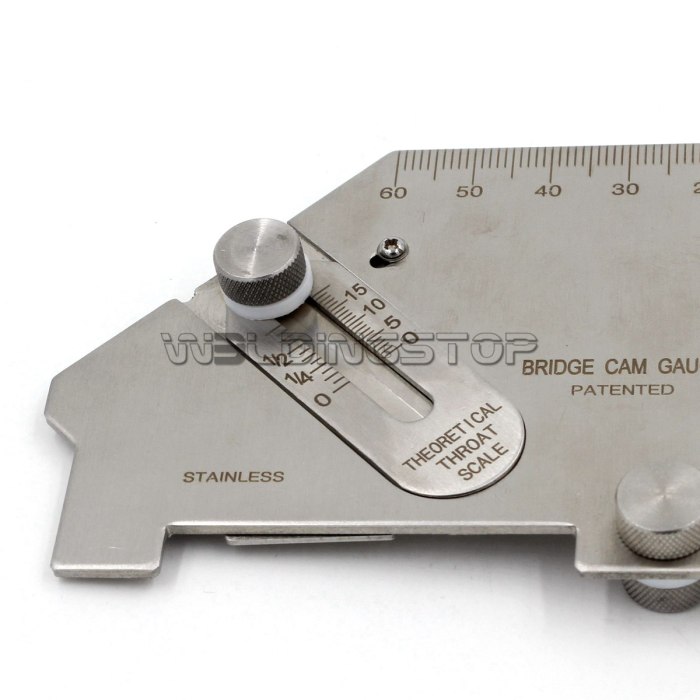

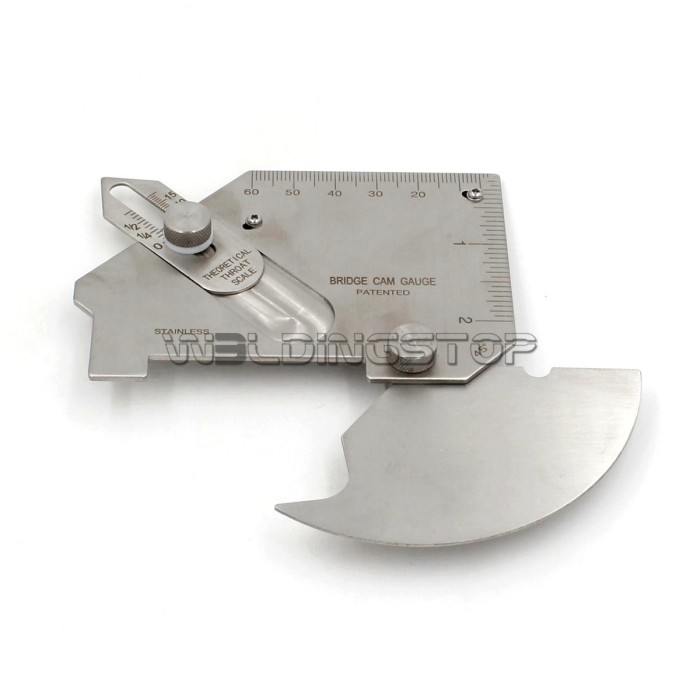

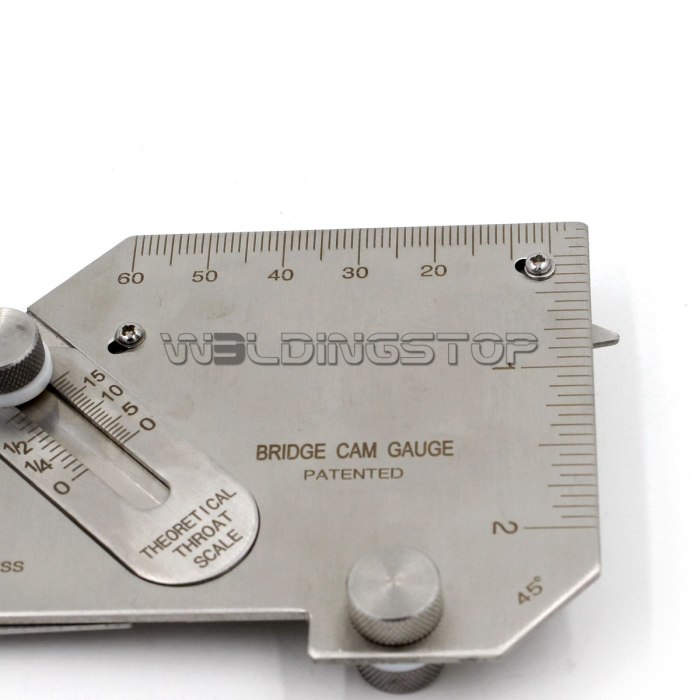

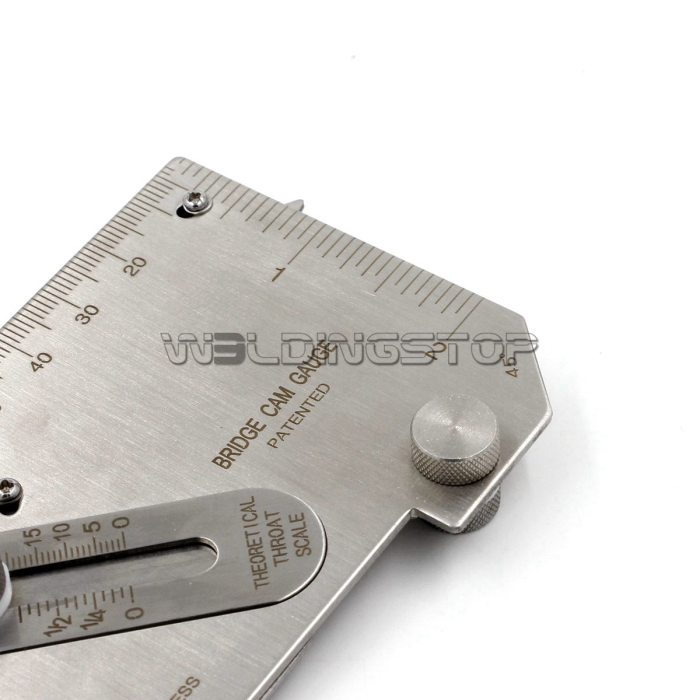

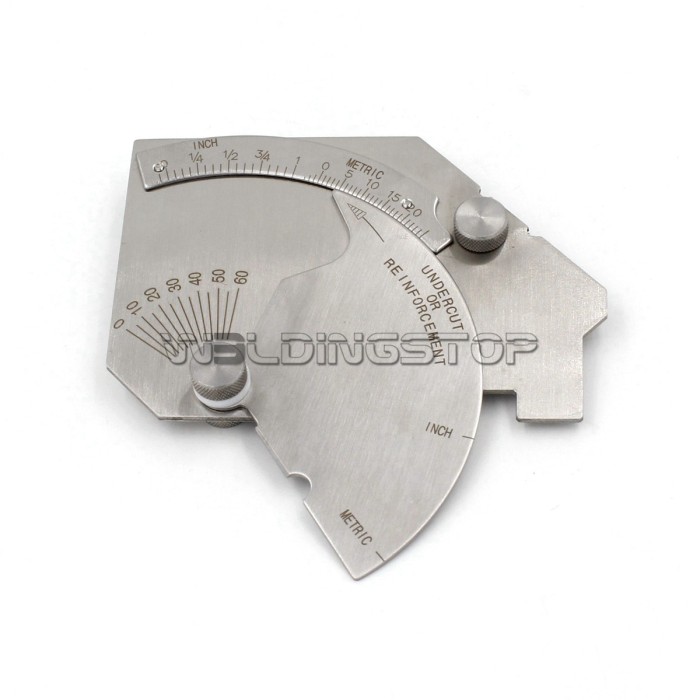

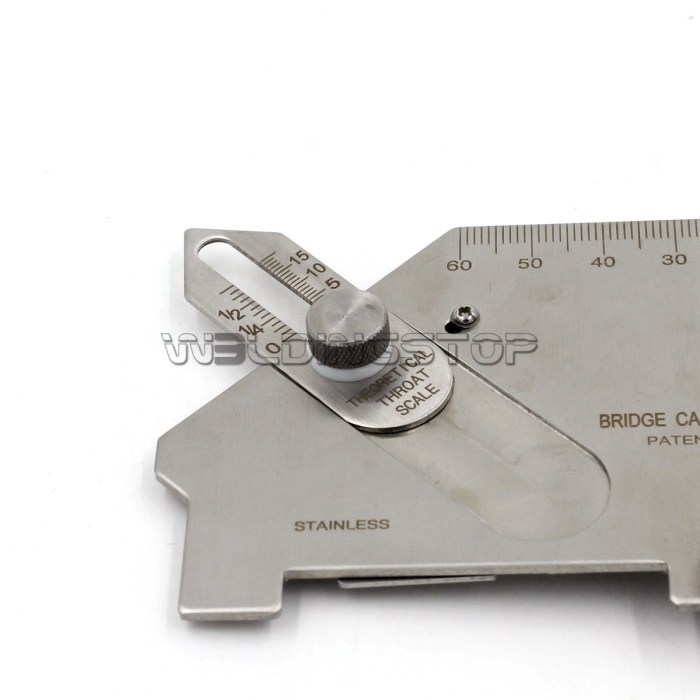

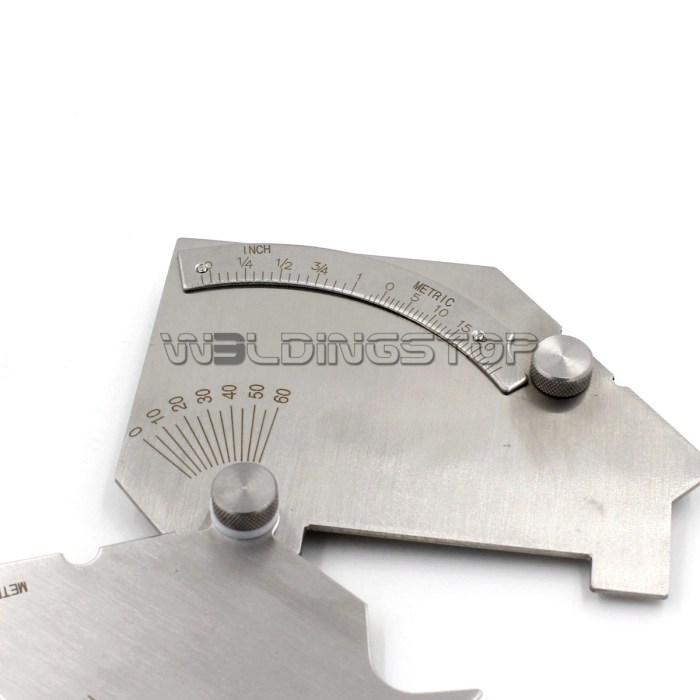

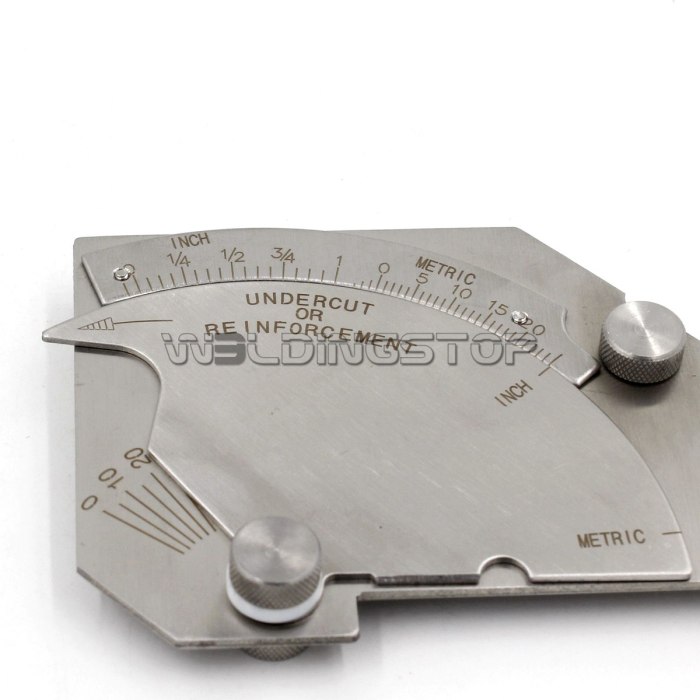

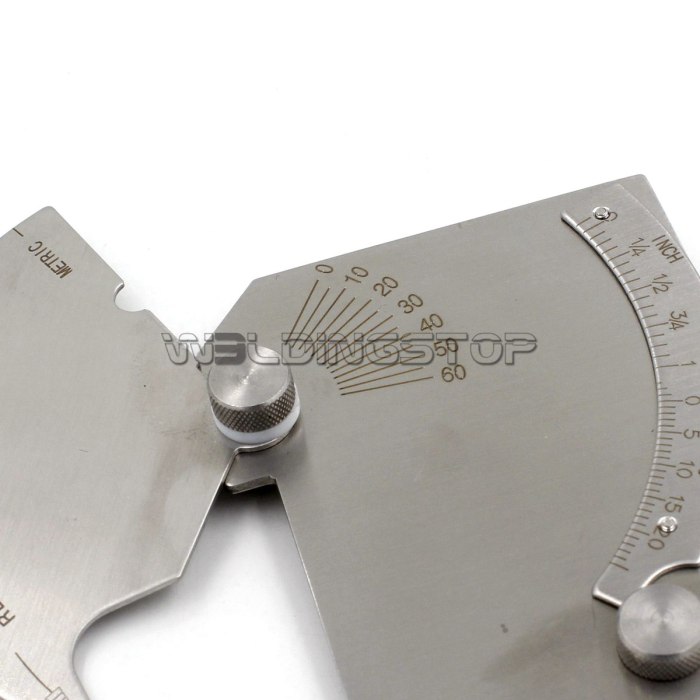

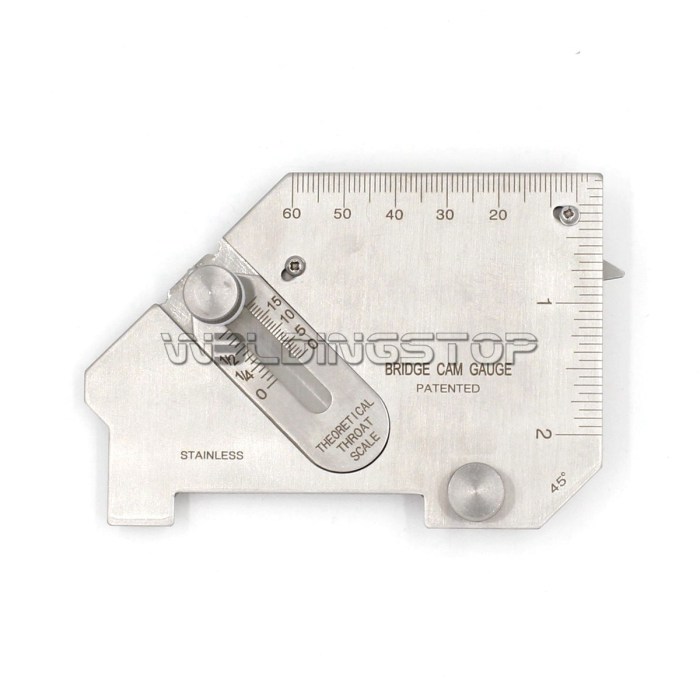

MG-8-B Bridge CAM Welding Gauge
Fillet Throat Gage with Direct Reading | Model: WSG-01007
KEY FEATURES
FILLET THROAT FOCUS
Specialized for fillet throat measurement with precision-ground anvils. Delivers accurate throat readings critical for determining weld strength capacity.
MG TYPE DESIGN
MG-series cam mechanism provides smooth rotation and consistent positioning. The self-centering design ensures the gauge sits square on the weld.
INCH & METRIC
Dual-scale markings in both inches and millimeters. Switch measurement systems instantly without needing separate tools or conversion tables.
COMPACT PROFILE
Pocket-sized tool fits easily into welding inspection kits. Ready for immediate use without assembly or calibration in the field.
SPECIFICATIONS
Spec Detail Model MG-8-B (WSG-01007) Measurement Fillet throat thickness Mechanism MG-type bridge cam Material Stainless steel Scales Inch and Metric APPLICATIONS
Fillet QC
Weld Audit
Code Testing
Inspector Kit
