HJC-40B Welding Gauge - Seam Reinforcement & Fillet Leg Length/Throat Inspection Tool | WeldingStop
-
- Product Name: HJC-40B Welding Gauge - Seam Reinforcement & Fillet Leg Length/Throat Inspection Tool | WeldingStop
- Item NO.: WSG-01003
- Weight: 0.12 kg = 0.2646 lb = 4.2329 oz
- Category: WELDING GAUGE > HJC series
- Creation Time: 2015-04-19
- HJC
- Precision welding inspection measurement tool
- Durable stainless steel construction
- Easy-to-read graduated markings
- Ideal for weld quality control and inspection
- Compatible with standard welding inspection procedures

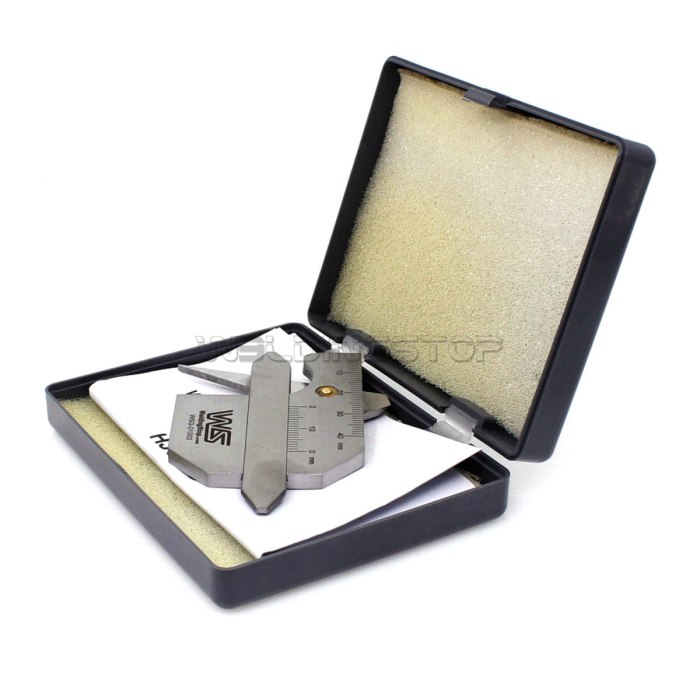

- Includes protective carry case for storage

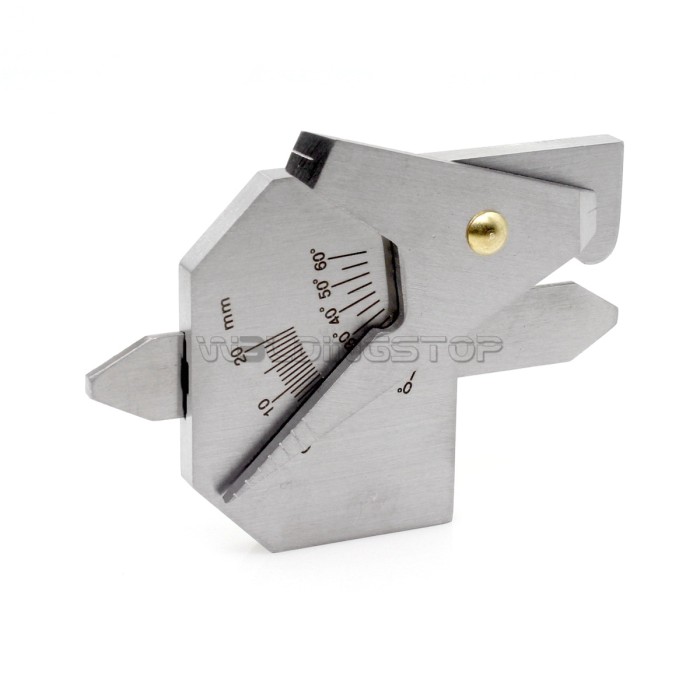

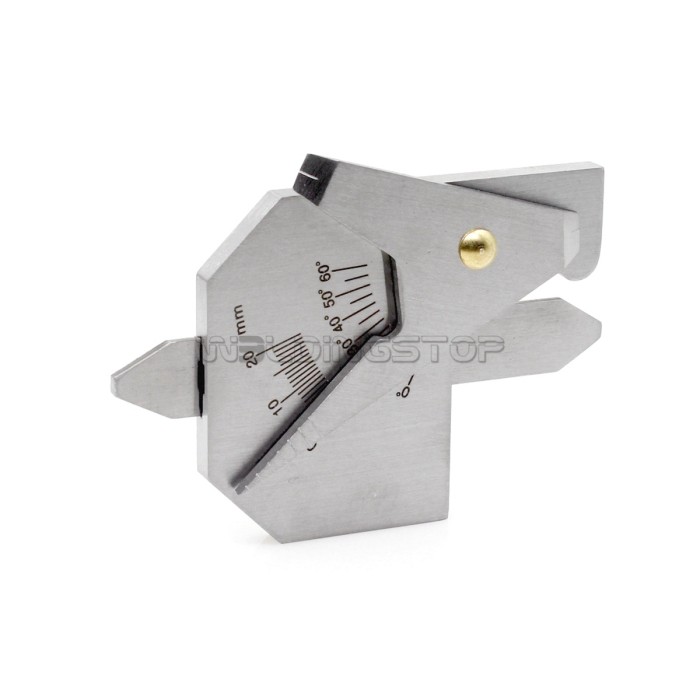

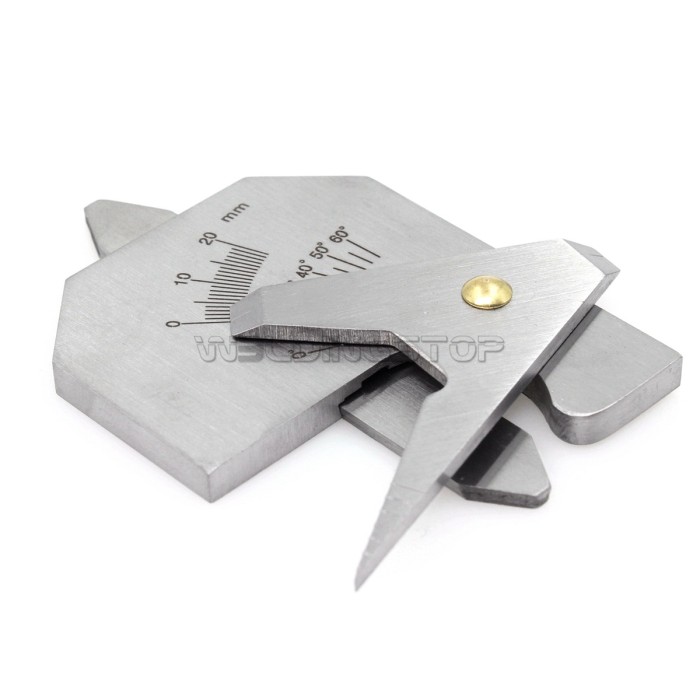

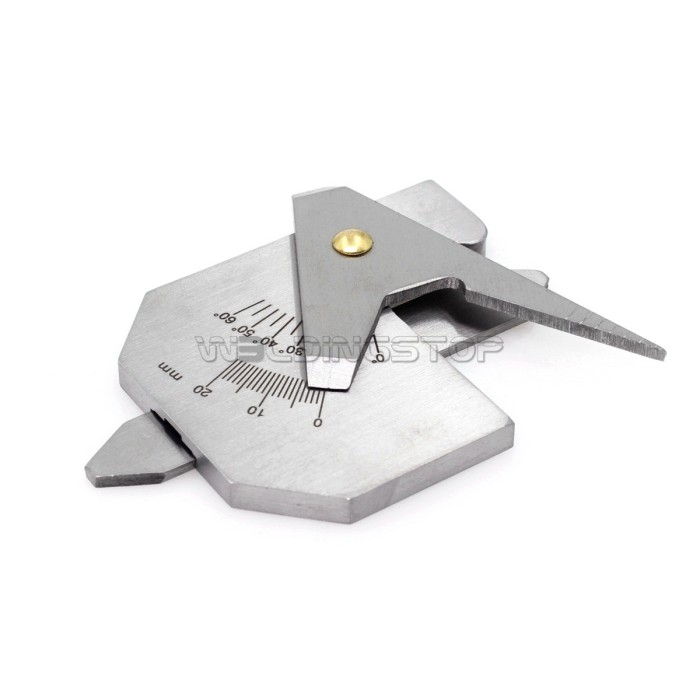

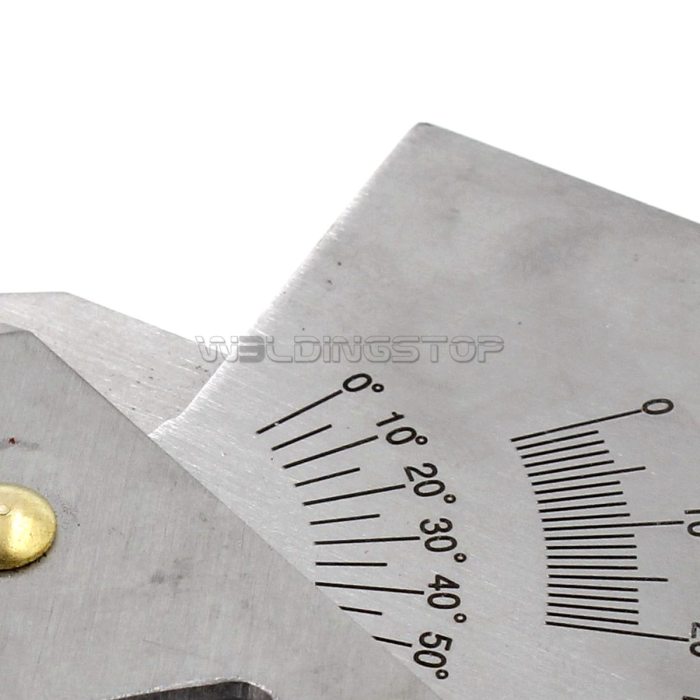

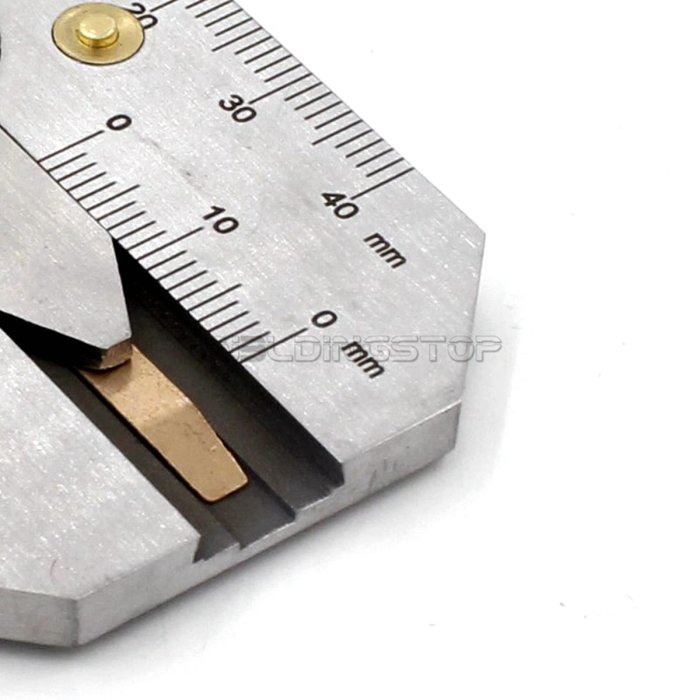

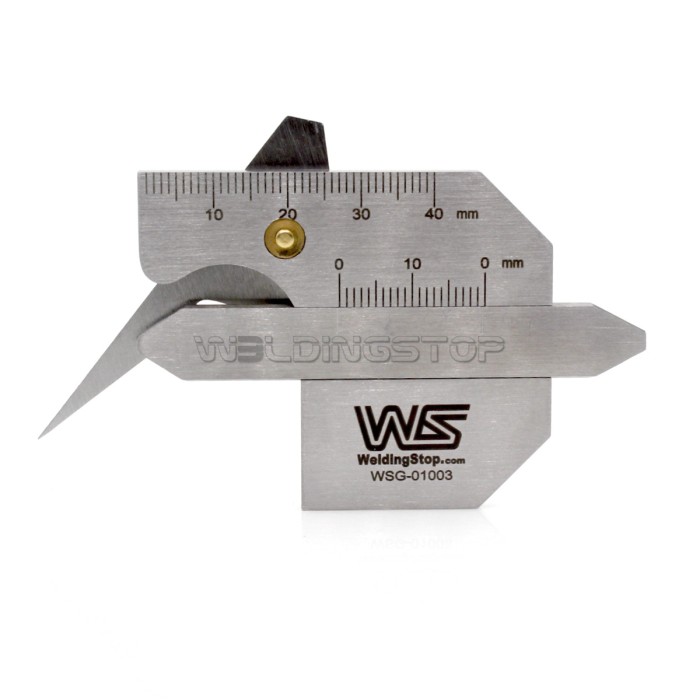

HJC-40B Welding Gauge

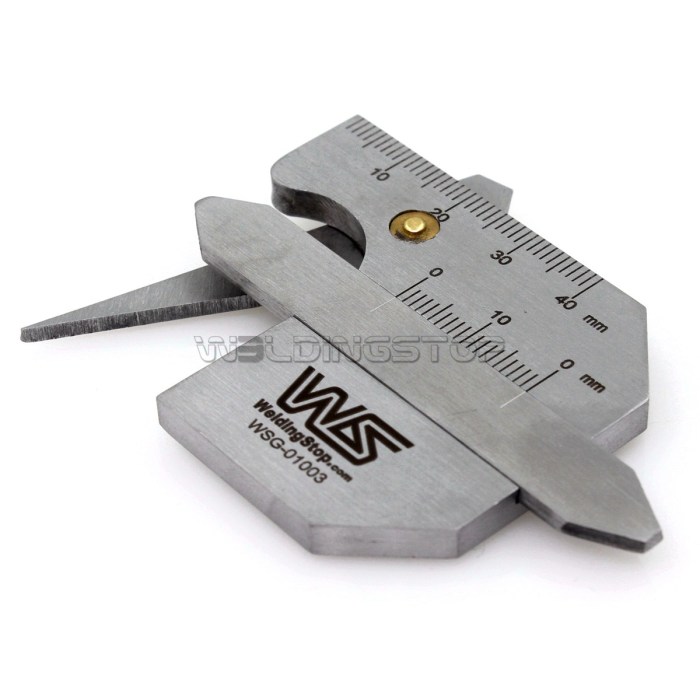

Seam Reinforcement & Fillet Leg Length/Throat | Model: WSG-01003
KEY FEATURES
SEAM REINFORCEMENT
Measures weld reinforcement height above base metal. Ensures reinforcement stays within code limits (typically 1/16 to 1/8 inch) for proper joint strength.
FILLET LEG & THROAT
Measures both fillet weld leg length and throat thickness. Verifies fillet size matches weld specifications for load capacity.
WELD PROFILE CHECK
Assesses overall weld profile including convexity and concavity. Helps identify potential weak points in the weld cross-section.
COMPACT SIZE
Pocket-sized design fits easily in inspection kit. Ready for immediate use on the shop floor or in the field without setup.
SPECIFICATIONS

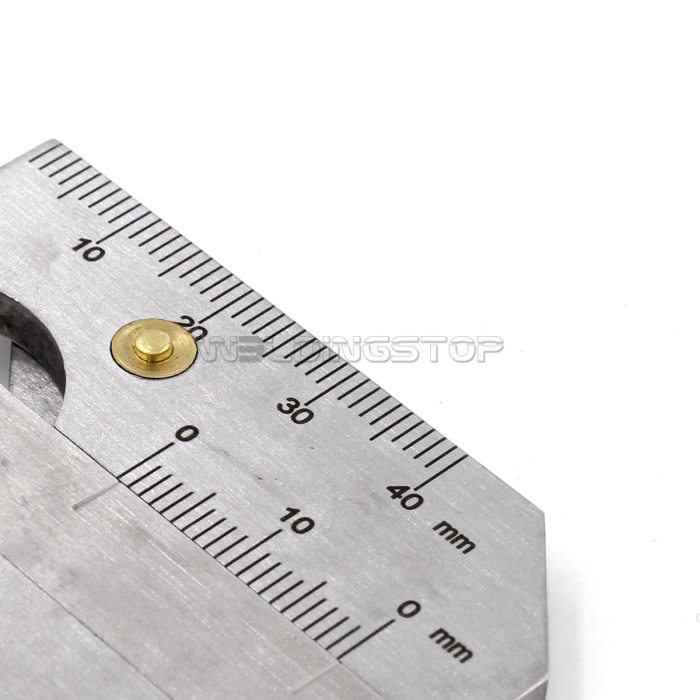

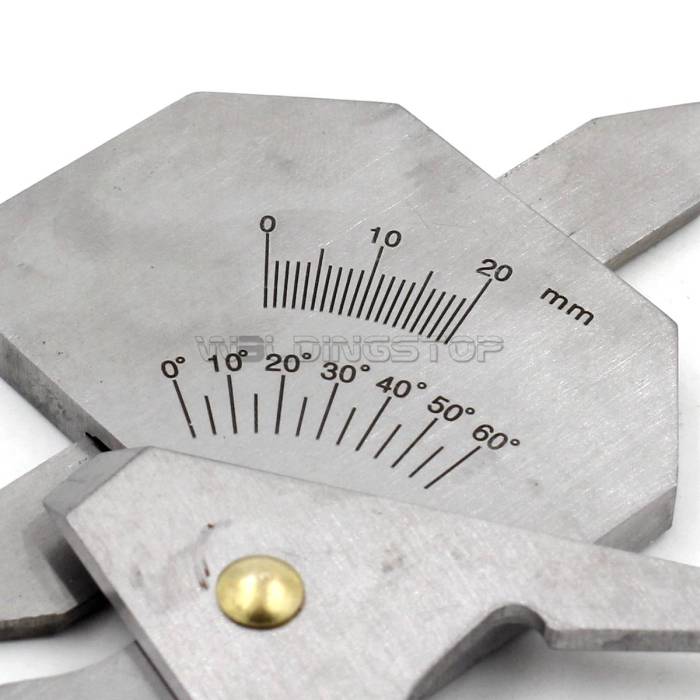

Spec Detail Model HJC-40B (WSG-01003) Measurement Type Seam reinforcement, fillet leg, fillet throat, profile Material Stainless steel Scale Metric and Inch Application Weld reinforcement QC, fillet inspection TYPICAL USES
Code Compliance
Weld Profiling
Quality Audit
Training
