HJC-30 Welding Gauge - Weld Seam/Bead Height & Bevel Angle Inspection Tool Stainless Steel | WeldingStop
-
- Product Name: HJC-30 Welding Gauge - Weld Seam/Bead Height & Bevel Angle Inspection Tool Stainless Steel | WeldingStop
- Item NO.: WSG-01001
- Weight: 0.09 kg = 0.1984 lb = 3.1747 oz
- Category: WELDING GAUGE > HJC series
- Creation Time: 2015-04-19

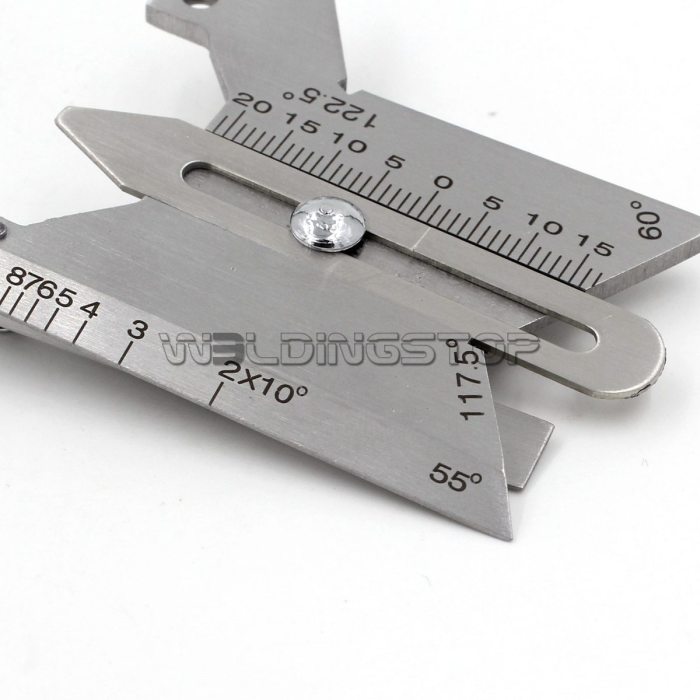

HJC-30 Welding Gauge
Weld Seam/Bead Height & Bevel Angle Inspection | Model: WSG-01001
KEY FEATURES
BEVEL ANGLE MEASUREMENT
Measures weld bevel angles accurately for groove preparation and joint fit-up. Essential for pipe and plate edge preparation quality control.
SEAM & BEAD HEIGHT
Measures weld seam reinforcement height and bead profile. Ensures welds meet code-specified reinforcement limits for structural integrity.
DUAL SCALE
Combines both metric (mm) and inch scales on one tool. No conversion needed when switching between measurement systems.
STAINLESS STEEL
Built from hardened stainless steel to resist rust and corrosion. Designed for daily use in welding shops and field inspection.
SPECIFICATIONS
Spec Detail Model HJC-30 (WSG-01001) Measurement Type Bevel angle, seam height, bead height Material Hardened stainless steel Scales Metric (mm) and Inch Application Groove bevel inspection, weld seam QC TYPICAL USES
Bevel Prep QC
Weld Seam Check
Pipe Welding
Fabrication
