Screw Thread Pitch Gauge Tool Set Thread Pitch Gauge Measuring Tool US System & Metric 60°and Whitworth 55 °58pcs

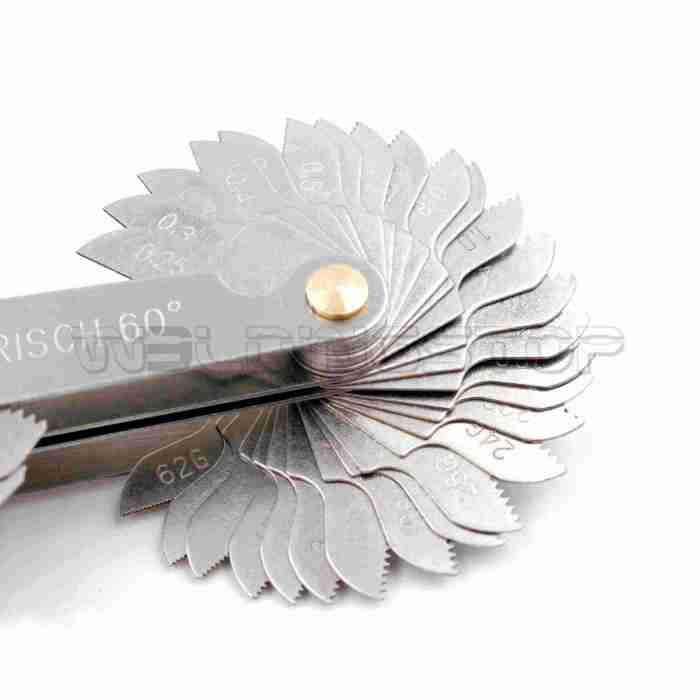

Screw Thread Pitch Gauge Tool Set Thread Pitch Gauge Measuring Tool US System & Metric 60°and Whitworth 55 °58pcs Item NO: WSG-02103

US$ 11.45 ~ US$ 22.90
Quantity 0-10 11-50 51-100 101-200 201-500
Discount 10% OFF 20% OFF 30% OFF 40% OFF 50% OFF
Price US$ 20.61 US$ 18.32 US$ 16.03 US$ 13.74 US$ 11.45
Quantity:
Shipping Cost:
Estimate Shipping Cost

NB: Please read list details, questions onapplication & compatibility please contact up without hesitation!!

Product Name Screw Thread Pitch Gauge Tool Set Thread Pitch Gauge Measuring Tool US System & Metric 60°and Whitworth 55 °58pcs
Item NO WSG-02103
Weight 0.0266 kg = 0.0586 lb = 0.9383 oz
Category Inspection Tool > Thread Gauge
Brand WeldingStop
Creation time 2019-05-25



Item Name

Screw Pitch Gauge / Thread Pitch Gauge

Measure Standard

SAE (US Standard) & Whitworth

Style

US System & Metric & Whitworth (58 pcs)

Number of Leaves

58 Pieces

Thread Degree

60° Metrisch

55° Whitworth

60° US System

Measuring Range (Metrisch 60°)

0.25-6.0mm

Measuring Range (Whitworth 55°)

4G-62G

Measuring Range (US System 60°)

8-28

Thread Size (Metrisch 60°)

0.25,0.3, 0.35, 0.4, 0.45, 0.5, 0.6, 0.7, 0.8, 0.9, 1.0, 1.25, 1.5, 1.75, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0

Thread Size (Whitworth 55°)

4, 4.5, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 18, 20, 22, 24, 25, 26, 28, 30, 32, 36, 40, 48, 60, 62

Thread Size (US System 60°)

8, 10, 11, 14, 19, 28

Material

Stainless Steel

WS-SKU

WSG-02103

Manufacturer

WeldingStop



Function

Accurately measures internal and external screw threads with thread blades of varied size

Material and Surface Finishing

Made of stainless steel and processed with chrome finish, it combines high strength, good resilience, elegant appearance

Most importantly, it won't get rusted easily and owns long lasting durability

Precise Measurements & Clear Scale

The toothed edges are sharply defined and the numbers are stamped and easy to read

Easy to Use

Designed with a hole on each end, from where you press the tooth gauge, you can easily rotate the thread blades

Item Protection

Each contained in a thick plastic bag which will protect the pitch gauge from water and stain

Measure Method

This thread gauge is applied to measure thread and external thread tooth pitch

Application Field

It is useful for checking tool angle while cutting threads in metal turning lathes

Measure Range

Thread gauge the degree of tooth-shaped model;

Measuring Rang(Metrisch 60°): 0.25-6.0mm

Measuring Rang(Whitworth 55°): 4G-62G

Measuring Rang(US System 60°): 8-28

Narrow-leaved designed to measure the external and internal threads - even in small holes



Measuring the Thread Pitch

Choosing a suitable gadget for the measure target until they match perfectly, the marked number on the gadget is the data you searching for

Ensuring Thread Tooth Angle

Choosing a suitable gadget for the target, if there is no gap translucent, tooth-shaped angle measured thread is correct

If there is uneven light transmission gap phenomenon, it shows the measured thread tooth shape is not accurate
