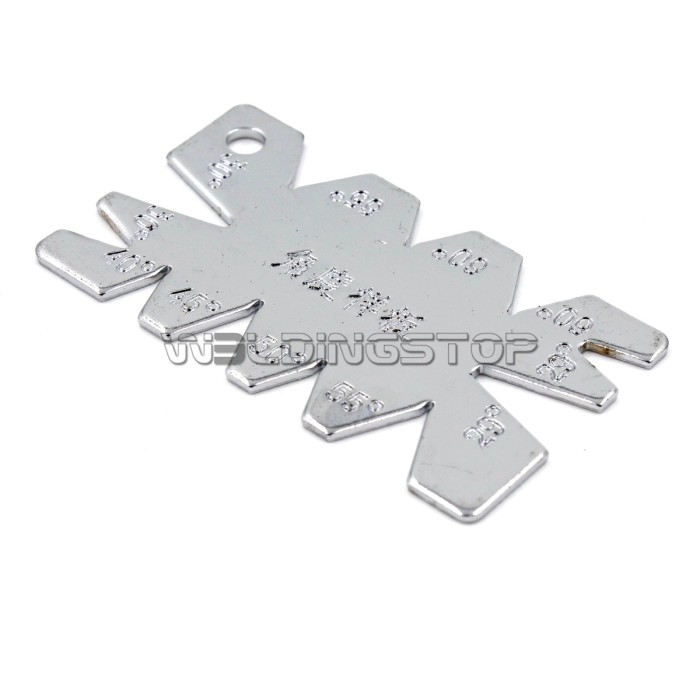

CNC Lather Cuting Angle Gage template Nickel plated measure scale

CNC Lather Cuting Angle Gage template Nickel plated measure scale Item NO: WSG-02018

US$ 1.00
Quantity:
Shipping Cost:
Estimate Shipping Cost

Please read product details, if you have question about product application and compatibility please contact up without hesitation.

Specifications
Product Name CNC Lather Cuting Angle Gage template Nickel plated measure scale
Item NO WSG-02018
Weight 0.0200 kg = 0.0441 lb = 0.7055 oz
Category Inspection Tool > Angle Gauge
Brand WeldingStop
Creation time 2015-04-23

Detail





Item Name:



Angle Gauge Nickel Plated Screw Thread Cutting Gage Template Tool Rustproof Laser Engraving



List Included:



1 piece x Angle gauge      WSG-02018



Bullet Point:



The surface of the gauge is plated with metal nickel to prevent it from rusting.

The gauge can be used for measuring eight different angle:29 / 30 / 40 / 45 / 50 / 55 / 60 / 65 Deg.

All scale is laser engraving with the advantage of easy use and direct reading .

It is most useful for checking tool angle while cutting threads in metal turning lathes. The angles on the thread cutting tool is checked on the V slots in the gauge.



Instruction for use:



Measuring Angle: 60 / 82 / 90 / 118 / 120 / 135 / 150 / 160 Deg.



More Details:



WS SKU: WSG-02018

Brand: WeldingStop

Item Package Quantity: 1 piece



Maintenance Method:

     1.Welding inspection ruler shall not be piled together with other metal tools,in case it is distorted.Friction between metal parts may cause malfunction and blur scales.

     2.Do not wipe scale area with amyl acetate etc.





Item Name

                                                              WS SKU

Angle Measure Range



Angle Temple Gauge

WSG-02016

29-65Degree

BUY NOW!

Angle Temple Gauge

WSG-02017

60-160 Degree

BUY NOW!

Angle Temple Gauge

WSG-02018

29-65Degree

BUY NOW!

18pcs Angle Temple Gauge set

WSG-02019

5-90 Degree

BUY NOW!

Acme Screw Thread Gauge

WSG-02020

29 Degree

BUY NOW!

Screw Thread Gauge

WSG-02021

30 Degree

BUY NOW!
